- Product name:drip irrigation pipe 16mm
- Application:Irrigation
- Diameter:16mm
- Color:Black
- Working pressure:0.4Mpa
- Roll length:500
- Feature:Flexible
- Certification:ISO9001
- Flow rate:2L/h,4L/h
- Wall thickness:0.8mm
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:ICTB1608200

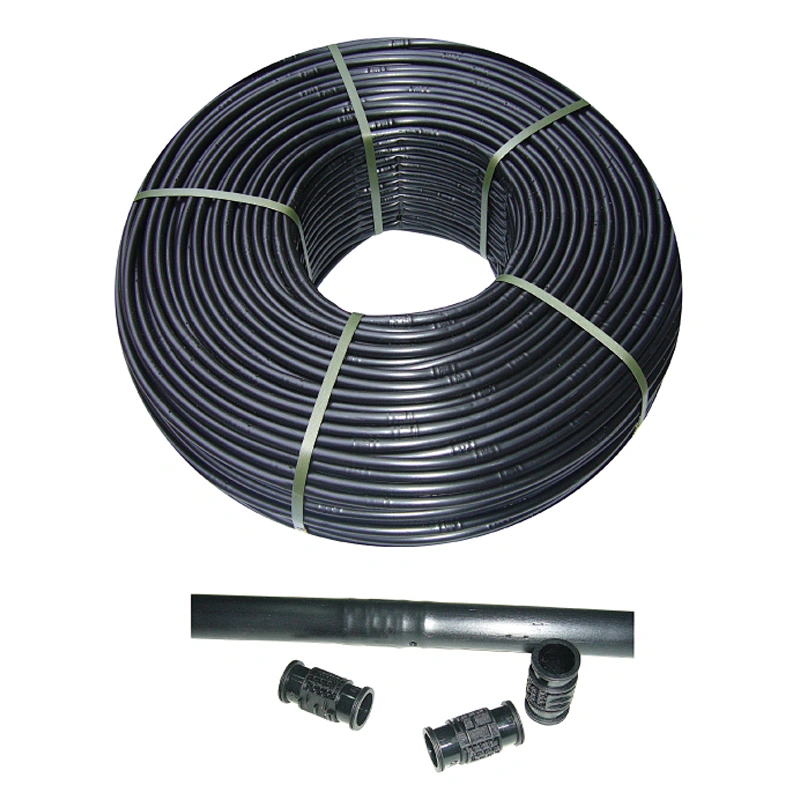

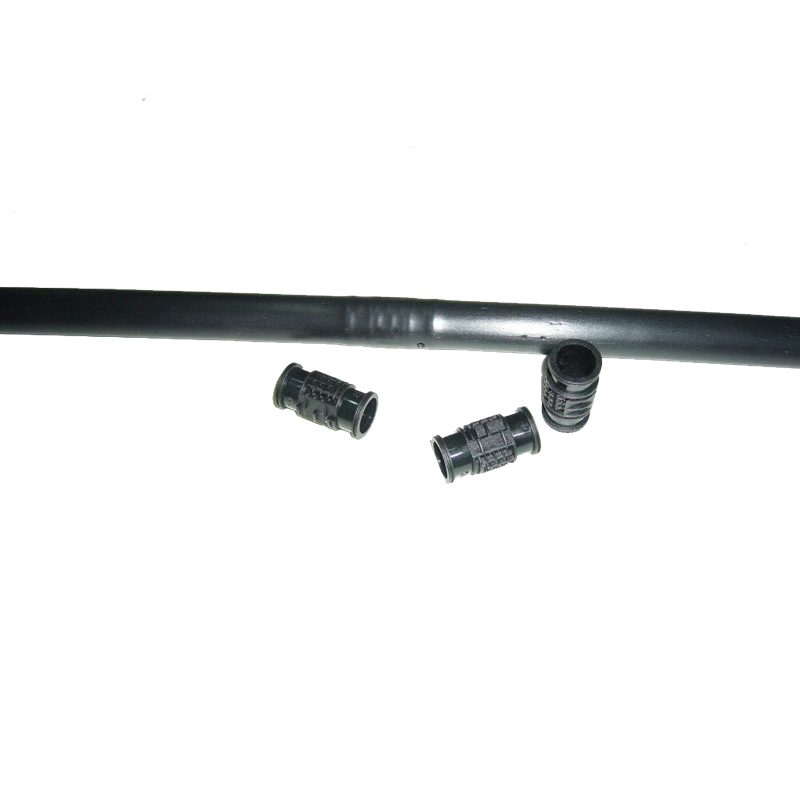

Inlaid cylindrical dripper drip irrigation pipe
Product Usage

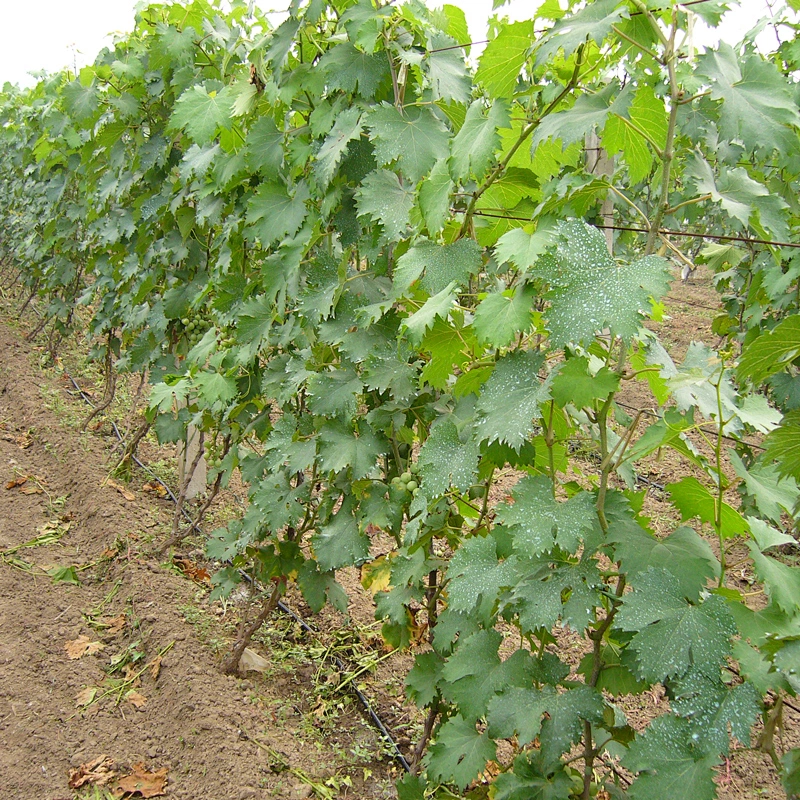

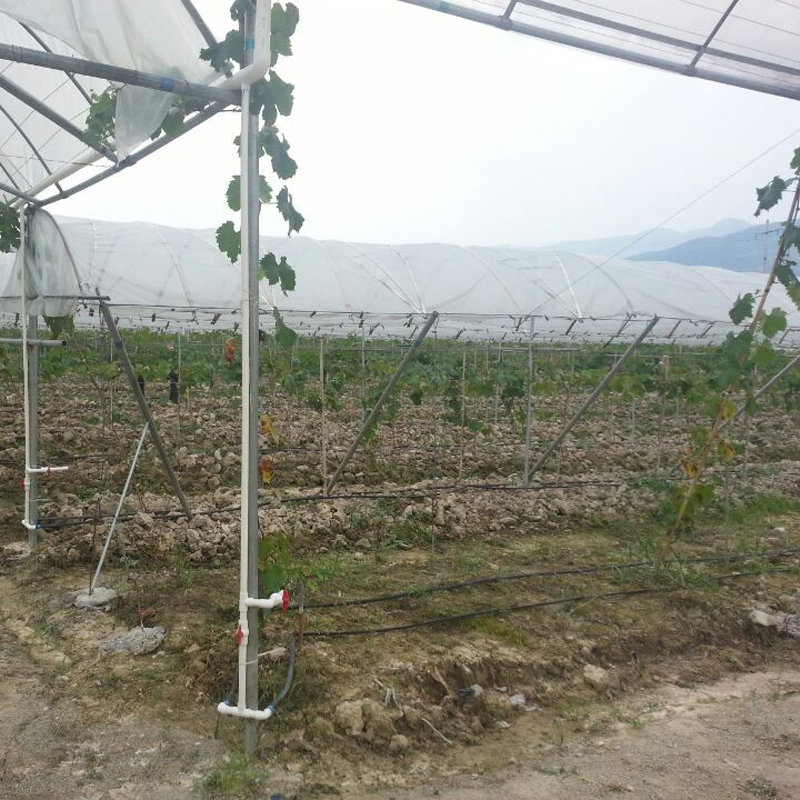

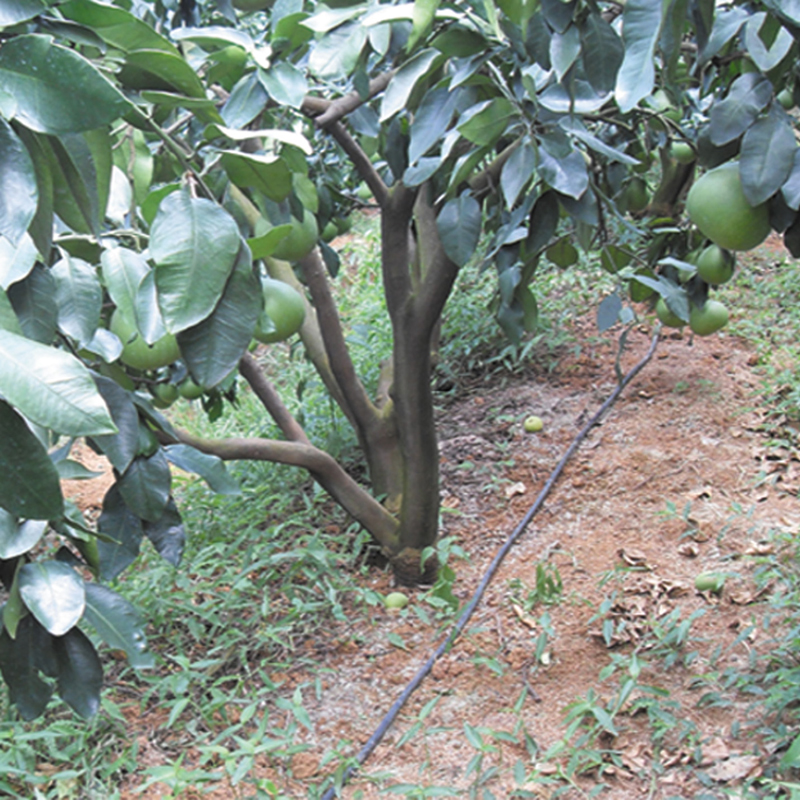

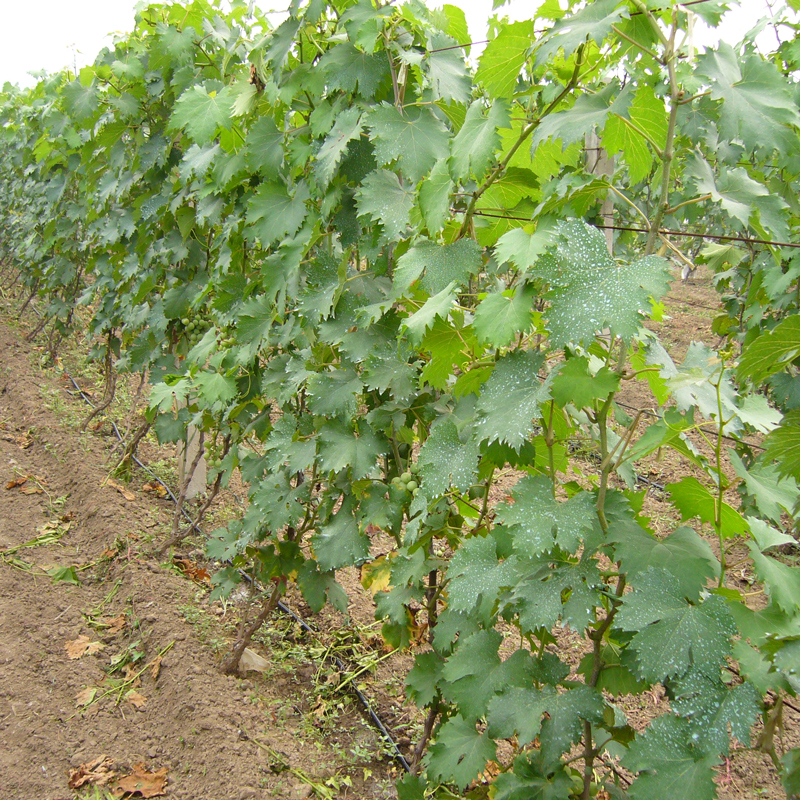

lWidely used in greenhouses, fruit trees, field crops and gardens, roof greening projects and other irrigation fields
lReduce soil phlegm, enhance soil permeability, and promote root development
lApplying water and fertilizer together to increase fertilizer use efficiency and saving labor and fertilizer
Parameters
lNominal diameter:16mm Ordinary dripper rated flow: 2.2 and 4.0L/h
lWall thickness: 0.6-1.0mm Pressure compensated dripper rated flow: 2.2L/h
lRolls per meter: 500m Drop spacing: 300, 500, 1000mm
Pic | Item NO. | Description | M/Roll | Measurement (Cm) | G.W (Kgs) | ||||
Name | Dia | Thickness | Dripper Spacing | Flow Rate | |||||
| ICTB1608200 | Inlaid cylindrical drip irrigation pipe | 16mm | 0.8mm | 200mm | 2L/h,4L/h | 500 | Dn80*30 | 19 |
Common drip-head type cylindrical drip irrigation pipe Recommended horizontal floor laying length (m)
flow changes | flow rate(L/h) | Drop spacing(m) | ||||
0.3 | 0.4 | 0.5 | 0.6 | 1 | ||
±5% | 2.2 | 50.6 | 63.3 | 75.1 | 85.9 | 100.6 |
±7.5% | 58.8 | 73.5 | 86.3 | 99.4 | 116.8 | |
±10% | 65.5 | 81.2 | 96.7 | 110.7 | 129.6 | |
±5% | 4 | 32.4 | 40.8 | 48.5 | 56.5 | 86 |
±7.5% | 36.6 | 46.4 | 50.5 | 64.5 | 95 | |
±10% | 40.2 | 51.2 | 61.5 | 70.8 | 104 | |
(Note: Inlet pressure of 0.1 mpa, recommended for different flow rates when the ground is flat )
Pressure VS flow rate
flow rate | pressure(mpa)VS flow rate(L/h) | |||||
0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | |
2.2L/h | 1.58 | 1.95 | 2.55 | 2.87 | 3.53 | 4.37 |
4.0L/h | 3.28 | 3.68 | 4.21 | 4.52 | 5.28 | 6.36 |
Working pressure suggestion: 0.08-0.12mpa
Company profile
Fujian Dafengshou Irrigation Technology Co.,Ltd is a company specializing in the research, development and production of water-saving irrigation products for agriculture, water conservancy, garden irrigation and integration of water and fertilizer systems. It also provides design, installation and guides on irrigation projects for agriculture, water conservancy, gardens and integration of water and fertilizer systems.
Our main products include micro-irrigation systems (drip irrigation and micros spray irrigation), sprinkling irrigation systems,filtration systems, fertilization systems, garden irrigation systems and accessories, etc. These products are widely used in agriculture, water saving irrigation, garden landscape, municipal greening, greenhouses, Cooling dust on industrial and mining.
FAQ
1.Q:What's the payment terms?
A:We accept T/T, Western Union, L/C and PayPal.
2.Q: How long is your delivery time?
A: Generally it is 7 days after 30% deposit by T/T received by the seller.
3.Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer free sample with express freight collect.
