- Product name:irrigation system drip pipe
- Application:Irrigation
- Diameter:16mm
- Color:Black
- Working pressure:0.4Mpa
- Roll length:500
- Feature:Flexible
- Certification:ISO9001
- Flow rate:2L/h,4L/h
- Wall thickness:1.0mm
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:ICTB1610500

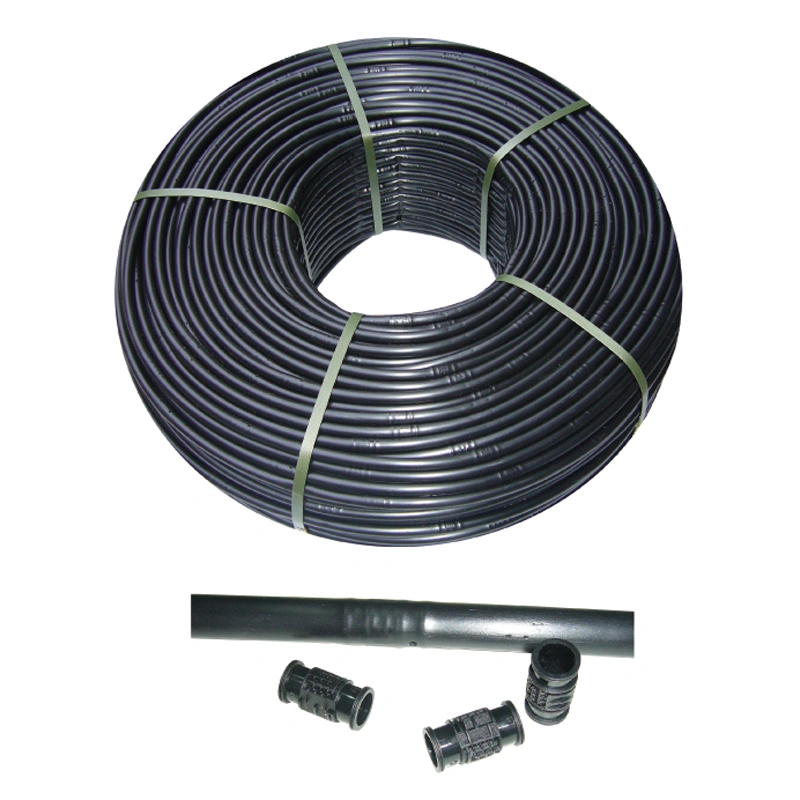

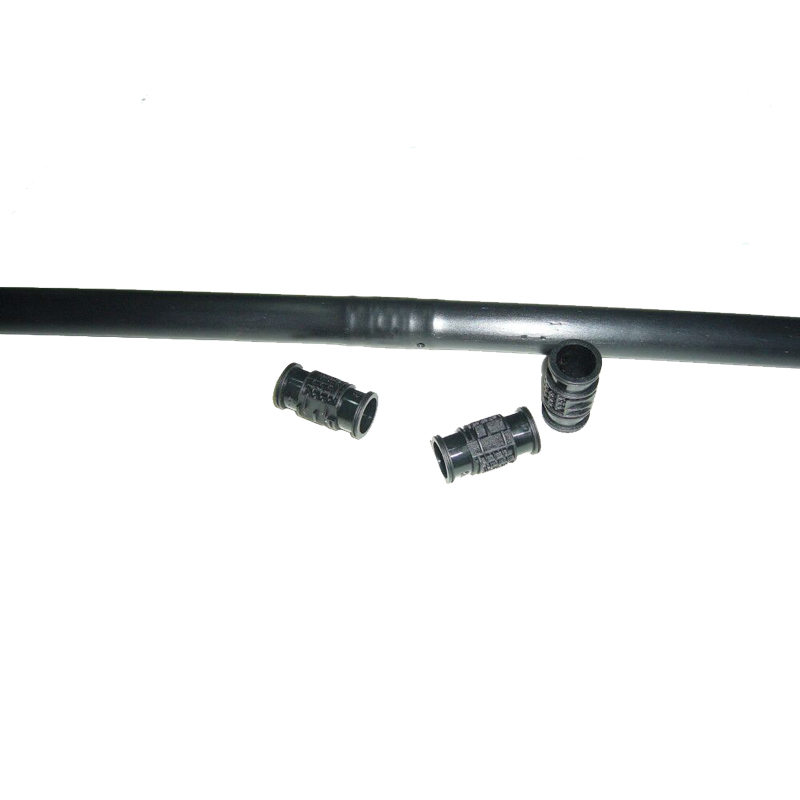

Inner cylindrical dripper drip irrigation pipe
Product description
The drip irrigation pipe is an important irrigation device in the drip irrigation system. According to the requirements of crop water demand, the water and the nutrients needed by the crop are dropped one by one through the low-pressure pipeline system and the irrigator installed on the capillary tube, and evenly and slowly drip into the crop. Root zone soil.
Advantages of drip irrigation pipe
1. Water saving, fertilizer saving, and labor saving;
2. Control temperature and humidity;
3. Maintain the soil structure;
4. Improve quality, increase production and increase efficiency.
Pic | Item NO. | Description | M/Roll | Measurement (Cm) | G.W (Kgs) | ||||
Name | Dia | Thickness | Dripper Spacing | Flow Rate | |||||
| ICTB1610500 | Inlaid cylindrical drip irrigation pipe | 16mm | 1.0mm | 500mm | 2L/h,4L/h | 500 | Dn80*30 | 26 |
Pressure VS flow rate
flow rate | pressure(mpa)VS flow rate(L/h) | |||||
0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | |
2.2L/h | 1.58 | 1.95 | 2.55 | 2.87 | 3.53 | 4.37 |
4.0L/h | 3.28 | 3.68 | 4.21 | 4.52 | 5.28 | 6.36 |
