- Diameter:16mm
- Color:Black
- Working pressure:0.4Mpa
- Roll length:500
- Feature:Flexible
- Certification:ISO9001
- Flow rate:2L/h, 3.2L/h
- Wall thickness:0.6mm
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:ICPTB1606500

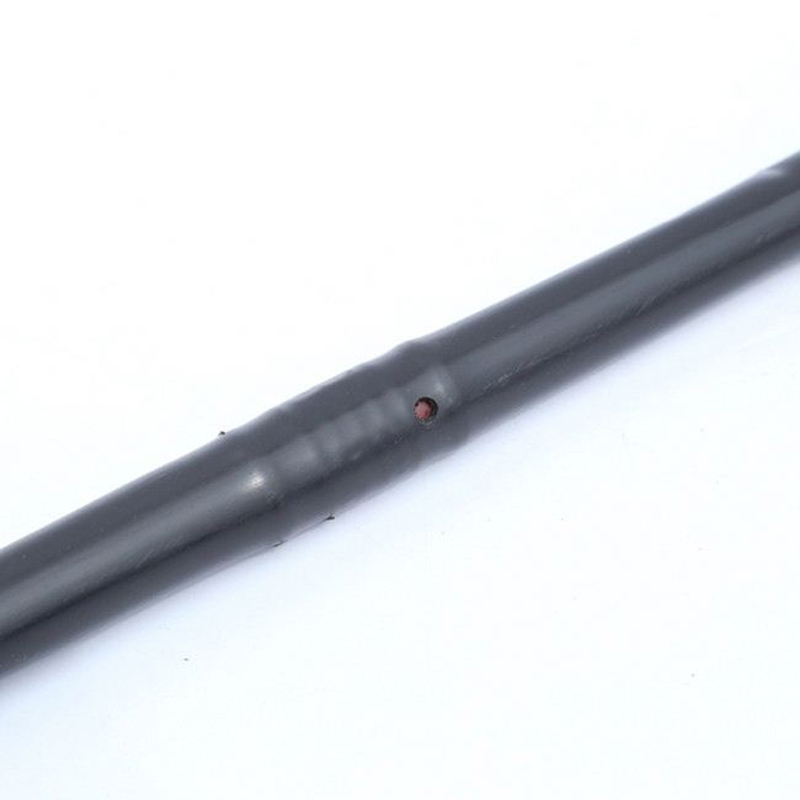

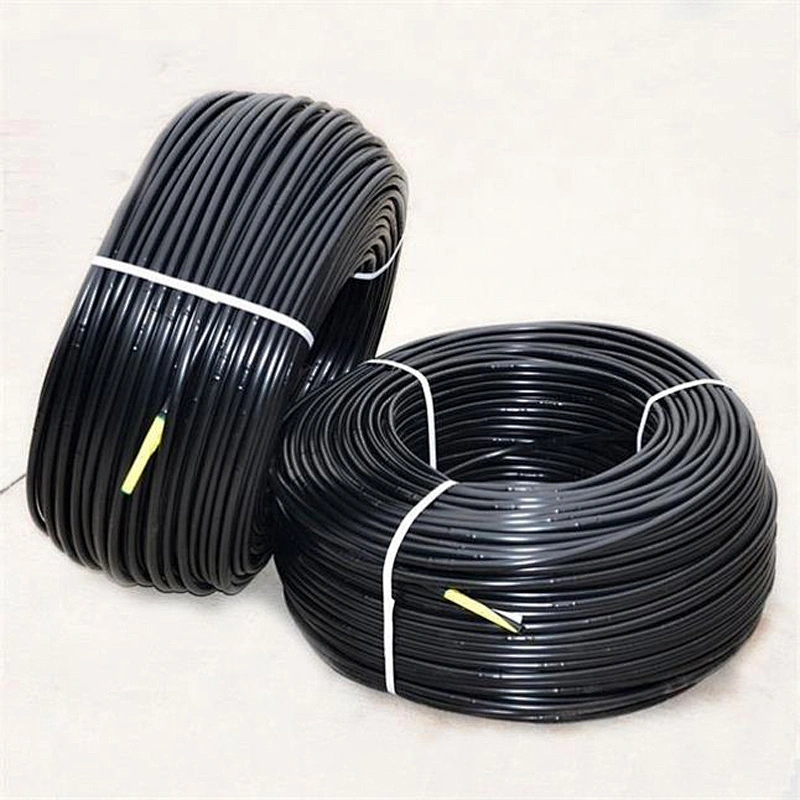

Agriculture Plastic Round Emitter Drip Irrigation Pipe

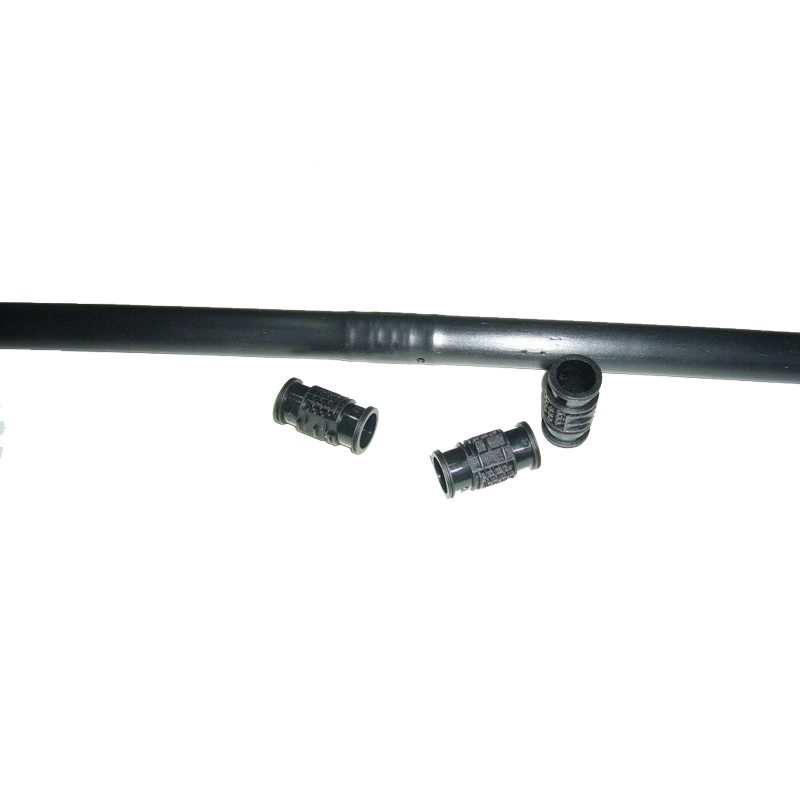

Pressure compensation
lThe dripper's compensating piece is made of high-quality silicone, and regardless of undulating terrain, long-distance laying or fluctuating pressure, the water flow can maintain continuous and uniform.
Pic | Item NO. | Description | M/Roll | Measurement (Cm) | G.W (Kg) | ||||
Name | Dia | Thickness | Dripper Spacing | Flow Rate | |||||
| ICPTB1606500 | Inlaid cylindrical pressure compensation drip irrigation pipe | 16mm | 0.6mm | 500mm | 2L/h,3.2L/h | 500 | Dn80*30 | 17 |
Pressure VS flow rate
flow rate | pressure(mpa)VS flow rate(L/h) | ||||||
0.05 | 0.08 | 0.12 | 0.15 | 0.20 | 0.25 | 0.30 | |
2.2L/h | 1.9 | 1.95 | 2.1 | 2.3 | 2.2 | 2.3 | 2.4 |
(working pressure suggestion: 0.08-0.12Mpa )
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
