- Product name:plastic drip irrigation pipe
- Application:Irrigation
- Diameter:16mm
- Color:Black
- Working pressure:0.4Mpa
- Roll length:500
- Feature:Flexible
- Certification:ISO9001
- Flow rate:2L/h,4L/h
- Wall thickness:0.8mm
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:ICTB1608400

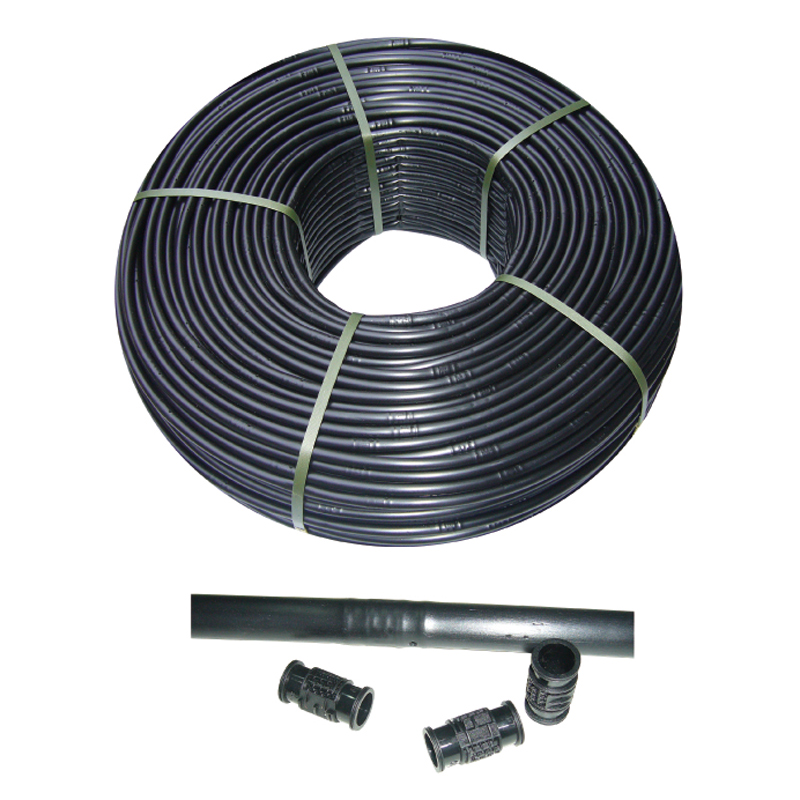

Agriculture Inlaid cylindrical dripper drip irrigation pipe
Features
lMade of LDPE
lInlay drip irrigation pipe design large area of the inlet filter, good anti-clogging performance
lAdopt a new type of wide and long, full turbulent flow channel with a certain degree of compensation to ensure uniform dripping

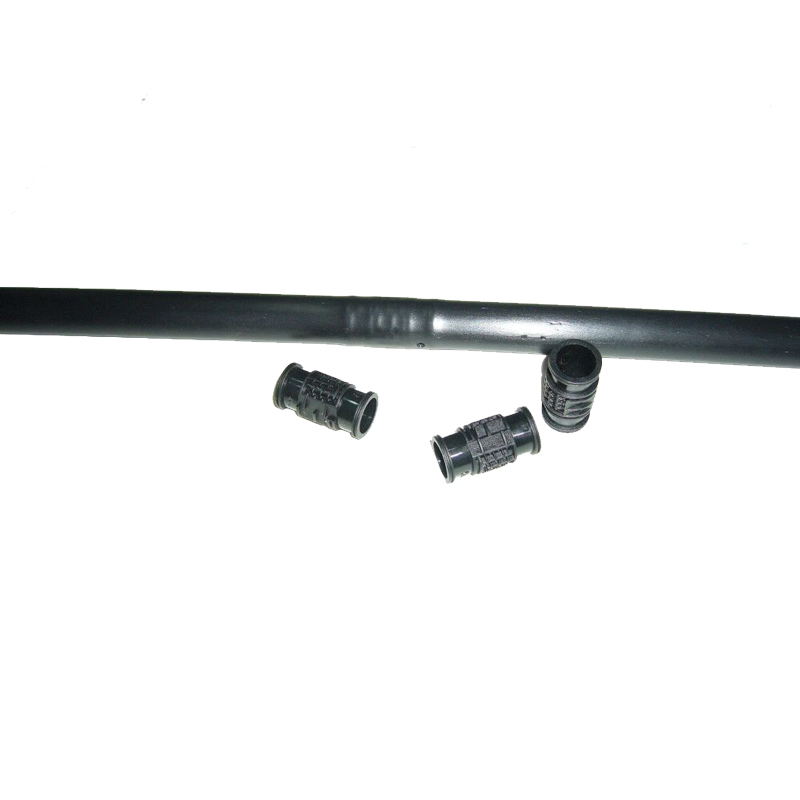

lOne-time extrusion molding,built-in cylindrical patchdripper, there are drop spacing between drippers. The dripper will not be damaged or fall off during construction and movement.
lMaterial formula, light weight, flexible, wear-resistant, anti-corrosion, anti-aging
lEasy to install, use and maintain; easy to automate
Product Usage

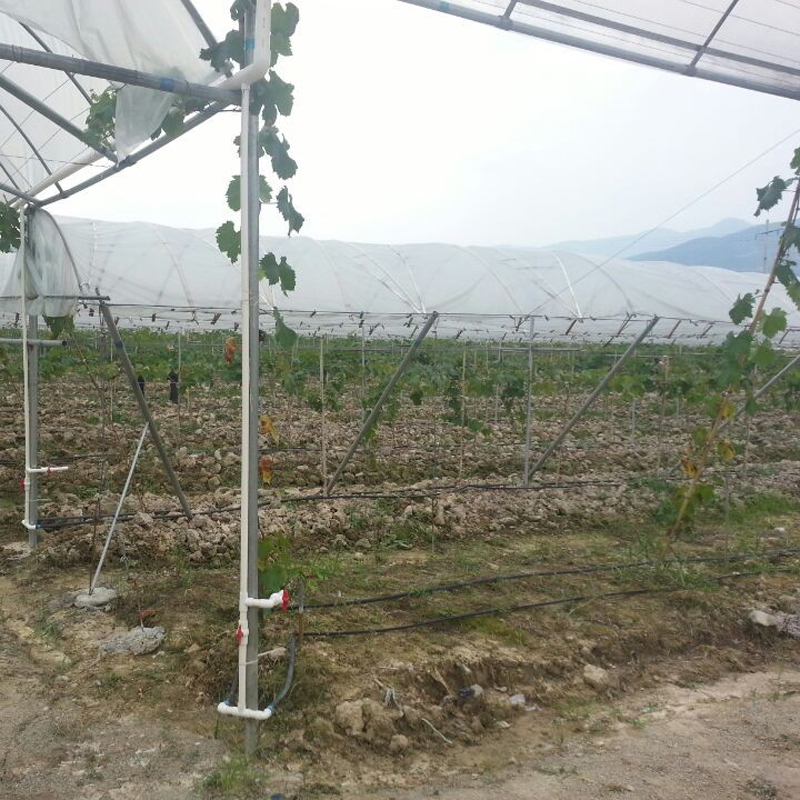

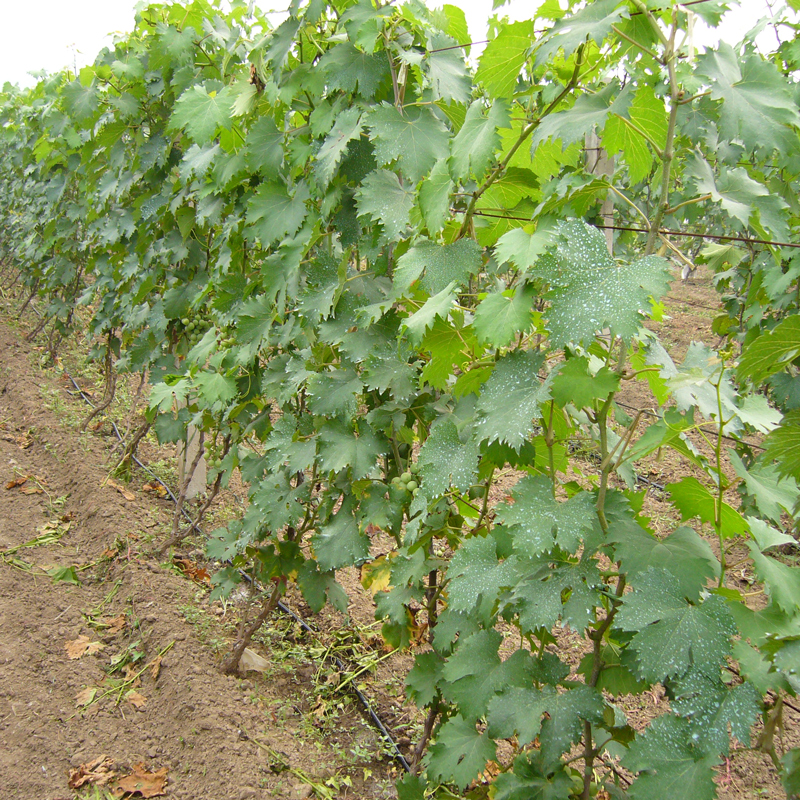

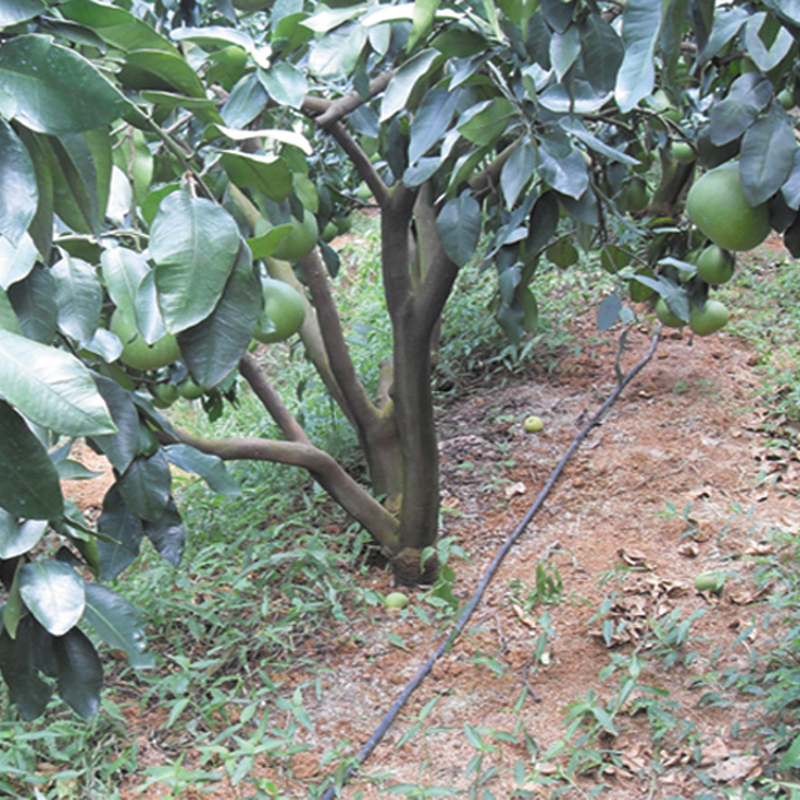

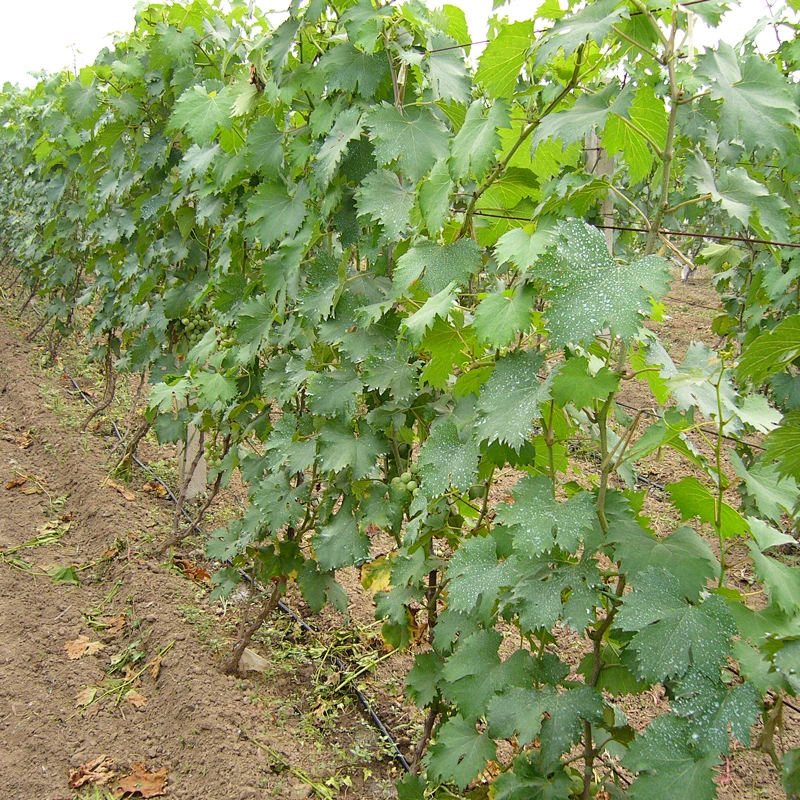

lWidely used in greenhouses, fruit trees, field crops and gardens, roof greening projects and other irrigation fields
lReduce soil phlegm, enhance soil permeability, and promote root development
lApplying water and fertilizer together to increase fertilizer use efficiency and saving labor and fertilizer
Parameters
lNominal diameter:16mm Ordinary dripper rated flow: 2.2 and 4.0L/h
lWall thickness: 0.6-1.0mm Pressure compensated dripper rated flow: 2.2L/h
lRolls per meter: 500m Drop spacing: 300, 500, 1000mm
Pic | Item NO. | Description | M/Roll | Measurement (Cm) | G.W (Kgs) | ||||
Name | Dia | Thickness | Dripper Spacing | Flow Rate | |||||
| ICTB1608400 | Inlaid cylindrical drip irrigation pipe | 16mm | 0.8mm | 400mm | 2L/h,4L/h | 500 | Dn80*30 | 16 |
Pressure VS flow rate
flow rate | pressure(mpa)VS flow rate(L/h) | |||||
0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | |
2.2L/h | 1.58 | 1.95 | 2.55 | 2.87 | 3.53 | 4.37 |
4.0L/h | 3.28 | 3.68 | 4.21 | 4.52 | 5.28 | 6.36 |
FAQ
Q1:Are you manufacturer or trading company ?
A:We are a professional manufacturer of drip irrigation products.
Q2:What is your terms payment ?
A:T/T 30% as deposit, and the balance 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. What is your terms of packing?
A: Generally, we pack the goods in bags and cartons.
Why choose us
lHigh-quality product
lProfessional services team
lQuick delivey
lAdvanced technology
lPerfect after-sales
