- Product name:drip pipe irrigation
- Application:Irrigation
- Diameter:16mm
- Color:Black
- Working pressure:0.4Mpa
- Roll length:500
- Feature:Flexible
- Certification:ISO9001
- Flow rate:2L/h,4L/h
- Wall thickness:0.6mm
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:ICTB1606500

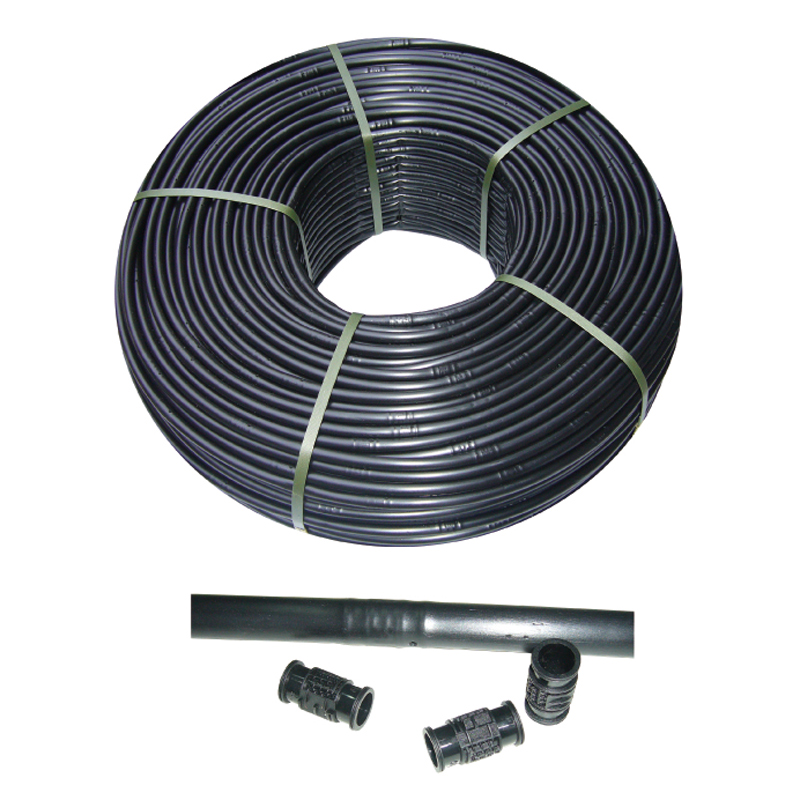

Water-saving drip irrigation pipe
Features
lMade of LDPE
lInlay drip irrigation pipe design large area of the inlet filter, good anti-clogging performance
lAdopt a new type of wide and long, full turbulent flow channel with a certain degree of compensation to ensure uniform dripping

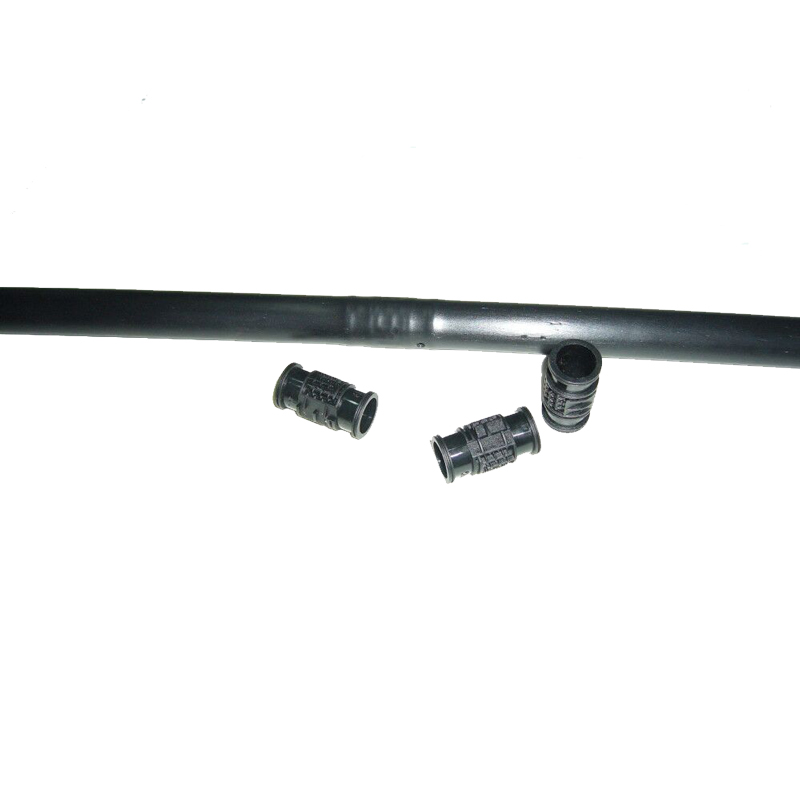

lOne-time extrusion molding,built-in cylindrical patchdripper, there are drop spacing between drippers. The dripper will not be damaged or fall off during construction and movement.
lMaterial formula, light weight, flexible, wear-resistant, anti-corrosion, anti-aging
lEasy to install, use and maintain; easy to automate
Pic | Item NO. | Description | M/Roll | Measurement (Cm) | G.W (Kgs) | ||||
Name | Dia | Thickness | Dripper Spacing | Flow Rate | |||||
| ICTB1606500 | Inlaid cylindrical drip irrigation pipe | 16mm | 0.6mm | 500mm | 2L/h,4L/h | 500 | Dn80*30 | 16 |
flow changes | flow rate(L/h) | Drop spacing(m) | ||||
0.3 | 0.4 | 0.5 | 0.6 | 1 | ||
±5% | 2.2 | 50.6 | 63.3 | 75.1 | 85.9 | 100.6 |
±7.5% | 58.8 | 73.5 | 86.3 | 99.4 | 116.8 | |
±10% | 65.5 | 81.2 | 96.7 | 110.7 | 129.6 | |
±5% | 4 | 32.4 | 40.8 | 48.5 | 56.5 | 86 |
±7.5% | 36.6 | 46.4 | 50.5 | 64.5 | 95 | |
±10% | 40.2 | 51.2 | 61.5 | 70.8 | 104 | |
Pressure VS flow rate
flow rate | pressure(mpa)VS flow rate(L/h) | |||||
0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | |
2.2L/h | 1.58 | 1.95 | 2.55 | 2.87 | 3.53 | 4.37 |
4.0L/h | 3.28 | 3.68 | 4.21 | 4.52 | 5.28 | 6.36 |
Working pressure suggestion: 0.08-0.12mpa
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
