- Size:3''
- Interface mode:male thread
- Measurement(cm):738*148*338mm
- G.W(kgs):9
- Feature:Easy to Install
- Color:Black
- Maximum flow rate:50m3/h
- Filter grade:75/120/150mesh
- Brand:DFSGG
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFSGG
- Model Number:DFS-3NV/M

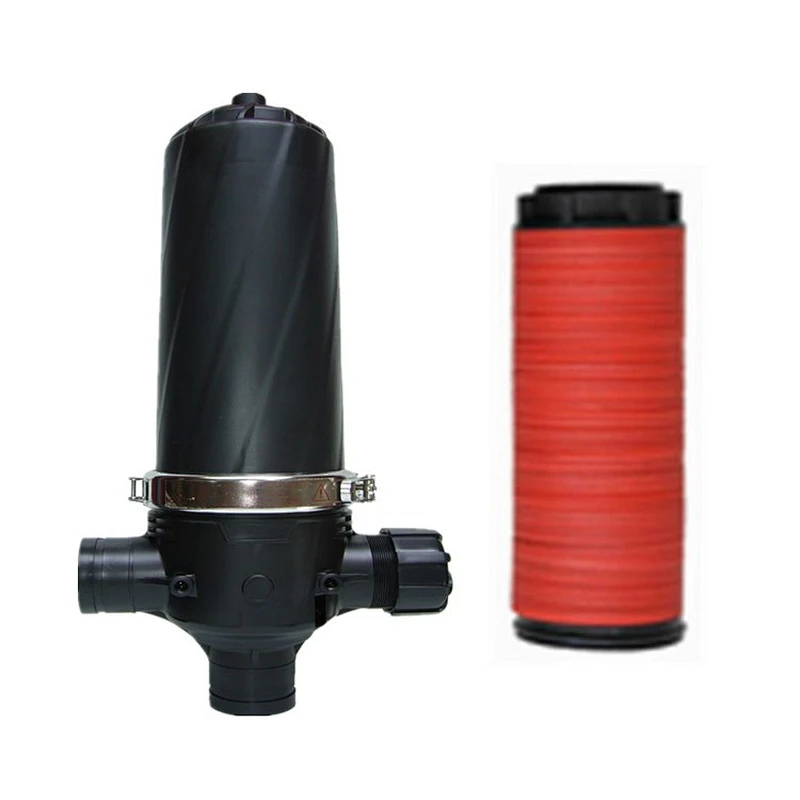

screen filter 3 inch drip irrigation kit
Features
lMicron precision filtration
lChemical resistant and durable
lConvenient cleaning and maintenance
lVarious socket sizes and appearance designs can meet a variety of applications
lLow cost and good performanceA screen filter is a type of filtration of waterusing a rigid or flexible screen to separate sand and other fine particles out of water for irrigation or industrial applications.
lThese are generally not recommended for filtering out organic matter such as algae, since these types of contaminants can be extruded into spaghetti-like strings through the filter if enough pressure drop occurs across the filter surface.
l Typical screen materials include stainless steel(mesh),polypropylene,nylonandpolyester.
Product Usage
lIrrigation System Water Filtration: Prevent Irrigation System Blockage, Improve Irrigation Efficiency
lWater treatment: water treatment for different purposes; water from industrial, civil, urban construction, etc. used for irrigation systems at Gore Stadium, parks, etc.; desalination equipment for reverse osmosis filtration
| Pic | Item No. | Description | Size | Interface mode | Element | Filter grade | Maximum working pressure | Maximum flow rate |
| DFS-3NV/M | 3"standard screen filter | 3" | Bayonet,Bayonet,Bayonet, |  Screen | 75/120/150mesh | 10kg/cm2 | 50m3/h |
Description | Item No. | A | B | C | E | M | H(mm) | W(mm) | X(mm) |
DFS-3NV/M | 3"bayonet | 3"bayonet | 3"male thread | 3/4"female thread | 1/4"female thread | 738 | 338 | 148 |
