- Size:3''
- Interface mode:male thread
- Measurement(cm):738*338*148mm
- Feature:Easy to Install
- Color:Black
- Maximum flow rate:30m3/h
- Filter grade:75/120 /150mesh
- Brand:DFSGG
- Product name:large irrigation filter
- Type:Other Watering & Irrigation
- Season:Everyday
- Room Space Selection:Not Support
- Occasion Selection:Not Support
- Holiday Selection:Not Support
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFSGG
- Model Number:DFS-3NR/A

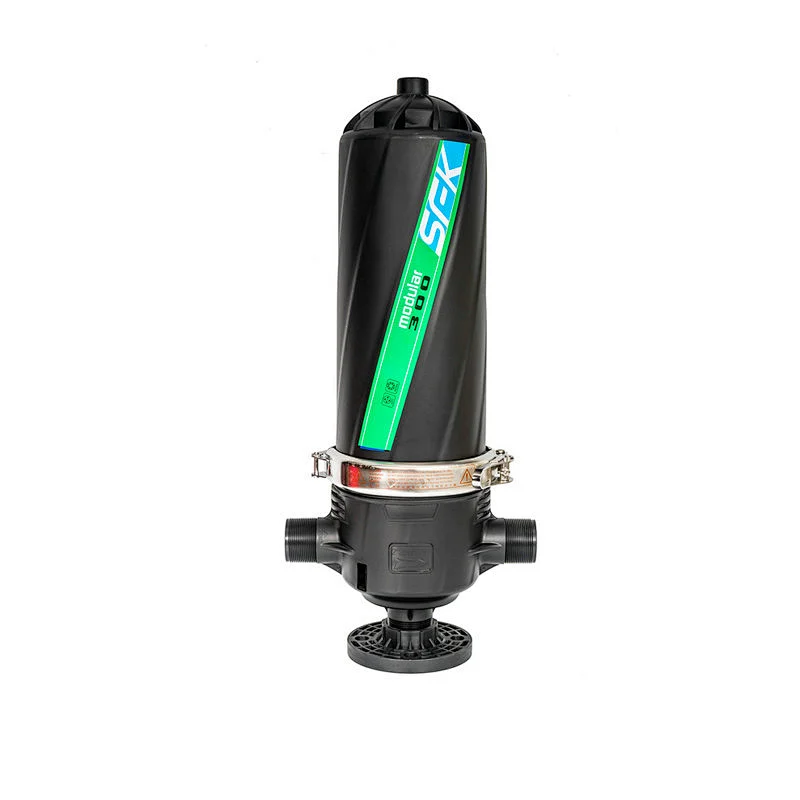

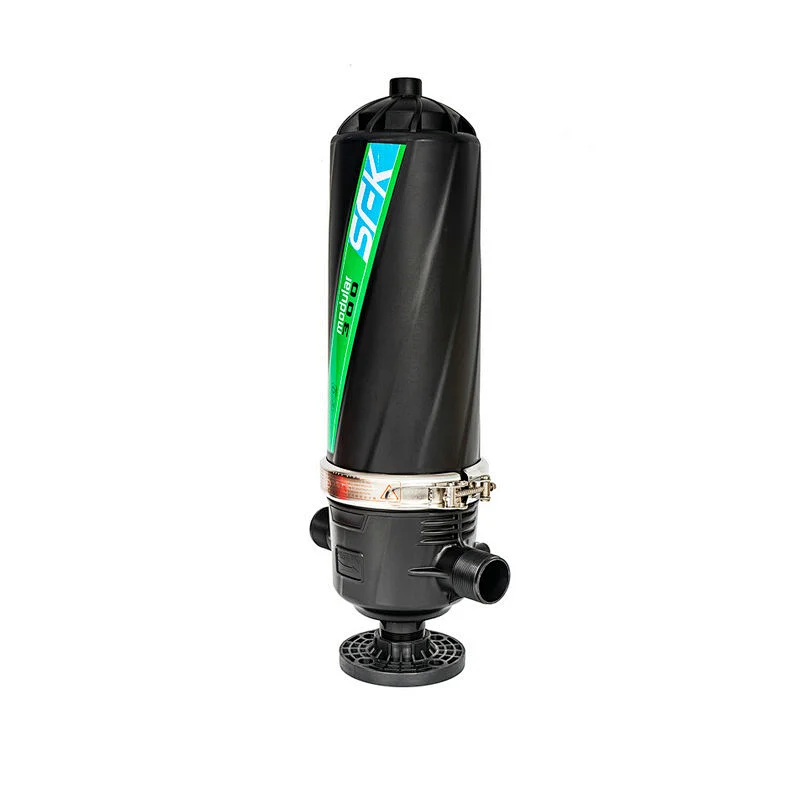

3 Inch Manual Irrigation Disc Filter
Features
ENGINEERED FOR EFFICIENT OPERATION WITH PRACTICALLY NO MAINTENANCE.
Plastic rings stack together creating a cylindrical filter element. During filtration, the rings are compressed together effectively filtering the water and protecting the system from clogging. Works well as a stand-alone unit or combined to form modular filter batteries.
1.Housings made of strong plastic, designed to resist great pressure which can be used for long time.
2.Simple installation,convenient equipment checking,Assembly and cleaning.
Product Usage
Irrigation system water filtration: prevent the irrigation system from clogging and improve irrigation efficiency
Water treatment: water treatment for different purposes; water from industry, civil, urban construction, etc., used for irrigation systems in Gore Stadium, parks, etc .;
Pic | Item No. | Description | Size | Interface mode | Element | Filter grade | Maximum working pressure | Maximum flow rate |
| DFS-3NR/A | Disc filter | 3" | Thread,Thread,Thread |
| 75/120/150mesh | 10Kg/cm2 | 30m3/h |
DiscDescription | Item No. | A | B | C | E | M | H(mm) | W(mm) | X(mm) |
Disc filter | DFS-3NR/A | 3"male thread | 3"male thread | 3"malethread | 3/4"female thread | 1/4"femal | 738 | 338 | 148 |
DFS-3NV/A | 3"bayonet | 3"bayonet | 3"male thread |
