- Product name:disc filter
- Application:Agriculture Irrigaiton
- Usage:Water-saving Irrigation System
- Color:Black
- Feature:Eco Friendly
- Size:55*36*30cm
- Working Pressure:1bar
- Packing:Carton Box
- Certification:ISO9001:2008
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFSGG
- Model Number:DFS-Y75/M
Feature
The shell is made of high-quality composite plastic, which is pressure-resistant, impact-resistant and durable.

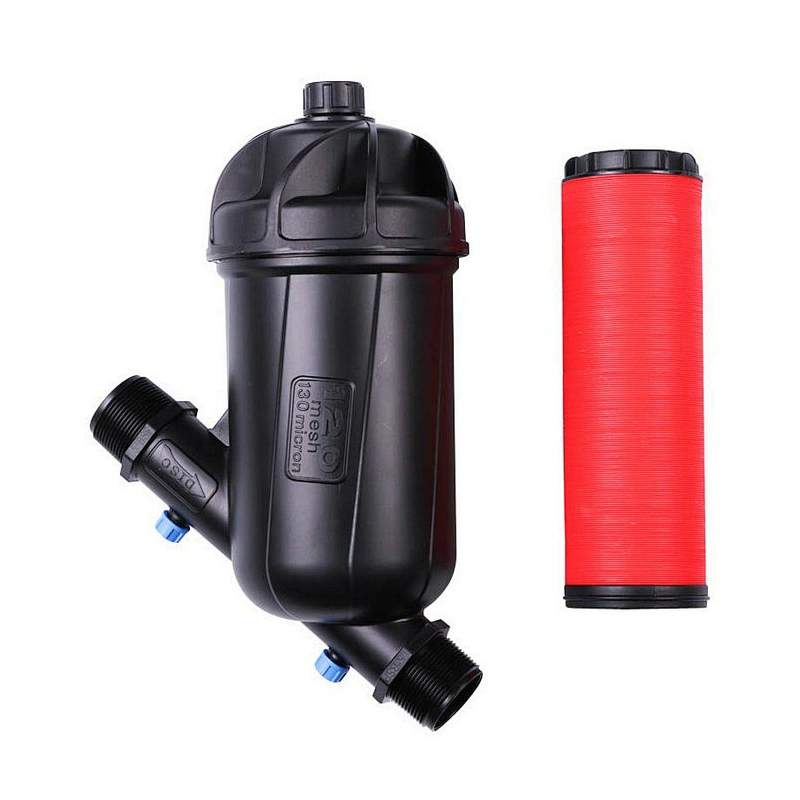

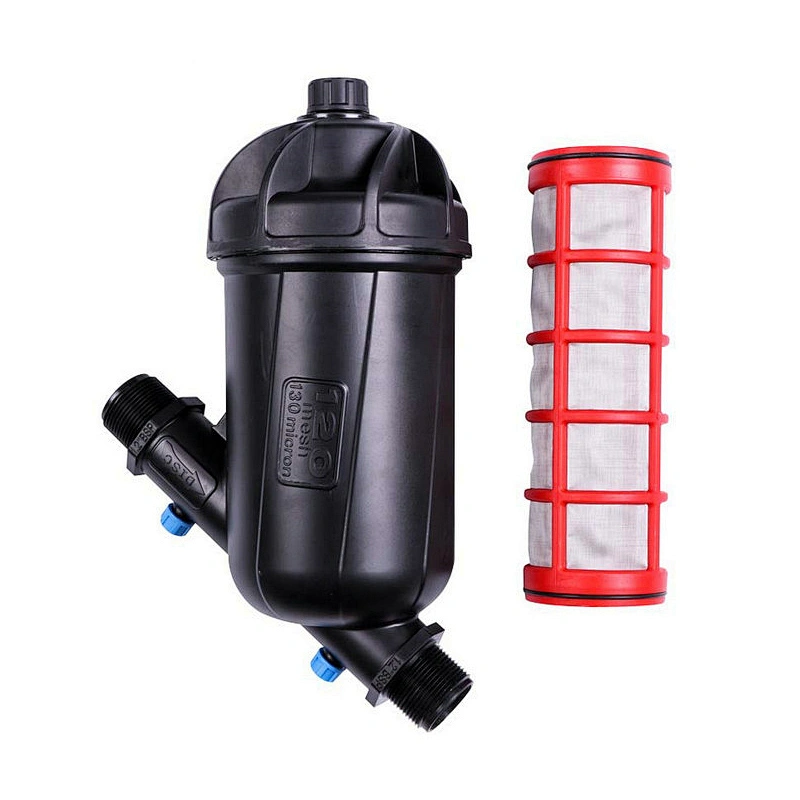

The filter core is available in stainless steel mesh and disc to suit different needs.
Easy to install and operate.
This flow plastic filter is especially suitable for small area such as supporting fertilization system, greenhouse, landscaping and garden irrigation.
| Item No. | Description | Size | Interface mode | Filter element | Filter grade | Maximum working pressure | Maximum flow rate |
| DFS-Y75/M | Mesh filter | 2-1/2" | male thread | Screen | 120mesh | 8Kg/cm2 | 15m3/h |
| DFS-Y63/M | 2" | male thread | |||||
| DFS-Y50/M | 1-1/2" | male thread | 12m3/h | ||||
| DFS-Y40/M | 1-1/4" | male thread | 10m3/h | ||||
| DFS-T50/M | 1-1/2" | male thread | 6Kg/cm2 | 12m3/h | |||
| 5m3/h | |||||||
| DFS-Y32/M | 1" | male thread | |||||
| 5m3/h | |||||||
| DFS-Y25/M | 3/4" | male thread |
| Pic | Item No. | Description | Packing (Pcs) | Measurement (Cm) | G.W(Kgs) |
 | DFS-Y75/A | 2-1/2"Disc filter,120mesh | 1/4 | 55*36*30 | 8 |
| DFS-Y63/A | 2"Disc filter,120mesh | 1/8 | 55*36*30 | 9 | |
| DFS-Y50/A | 1-1/2"Disc filter,120mesh | 1/10 | 55*36*30 | 9 | |
| DFS-Y40/A | 1-1/4"Disc filter,120mesh | 1/10 | 55*36*30 | 9 | |
 | DFS-Y75/M | 2-1/2"Mesh filter,120mesh | 1/4 | 55*36*30 | 7 |
| DFS-Y63/M | 2"Mesh filter,120mesh | 1/8 | 55*36*30 | 8 | |
| DFS-Y50/M | 1-1/2"Mesh filter,120mesh | 1/10 | 55*36*30 | 7 | |
| DFS-Y40/M | 1-1/4"Mesh filter,120mesh | 1/10 | 55*36*30 | 7 | |
 | DFS-T50/A | 1-1/2"Disc filter,120mesh | 1/10 | 55*36*28 | 10 |
 | DFS-T50/M | 1-1/2"Mesh filter,120mesh | 1/10 | 55*36*28 | 7 |
| Small flow plastic filter | |||||
 | DFS-Y32/A | 1"Disc filter,120mesh | 1/40 | 54*35*28 | 12 |
| DFS-Y25/A | 3/4"Disc filter,120mesh | 1/40 | 54*35*28 | 12 | |
 | DFS-Y32/M | 1"Mesh filter,120mesh | 1/40 | 54*35*28 | 9 |
| DFS-Y25/M | 3/4"Mesh filter,120mesh | 1/40 | 54*35*28 | 9 | |
