- Product name:filter disc automatic
- Color:Black
- Size:55*36*30cm
- Certification:ISO9001:2008
- Packing:Carton Box
- Feature:Eco Friendly
- Condition:New
- Warranty:6 months
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Usage:Liquid Filter
- Type:Filter Disc
- Material:plastic
- Hole Shape:Round
- Place of Origin:CN;FUJ
- Core Components:other
- Brand Name:DFSGG
- Filter Rating:99%
- Length:55cm
- Width:36cm
Feature
lThe shell is made of high-quality composite plastic, which is pressure-resistant, impact-resistant and durable.

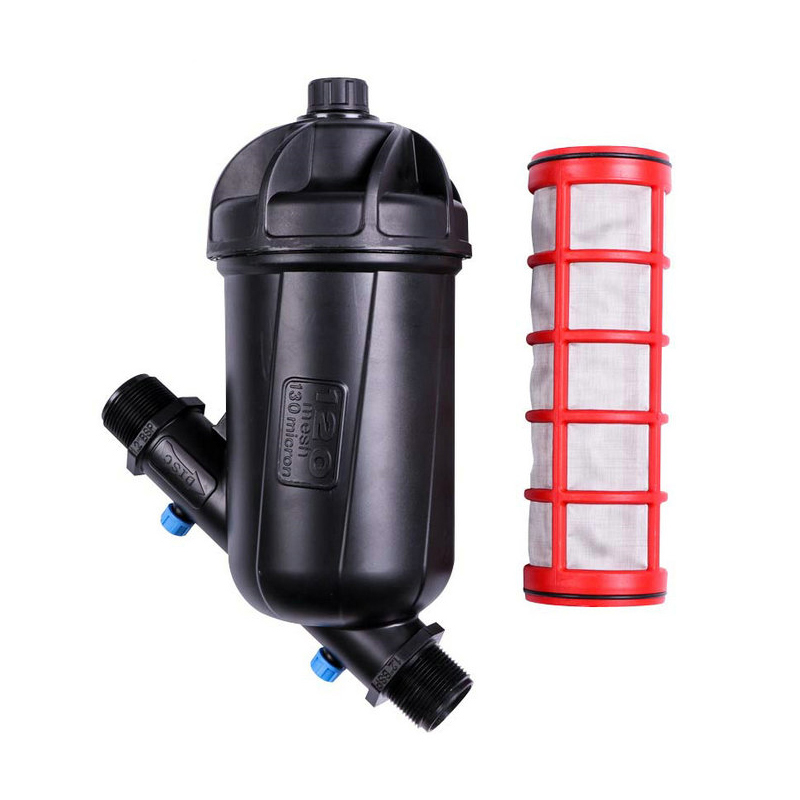

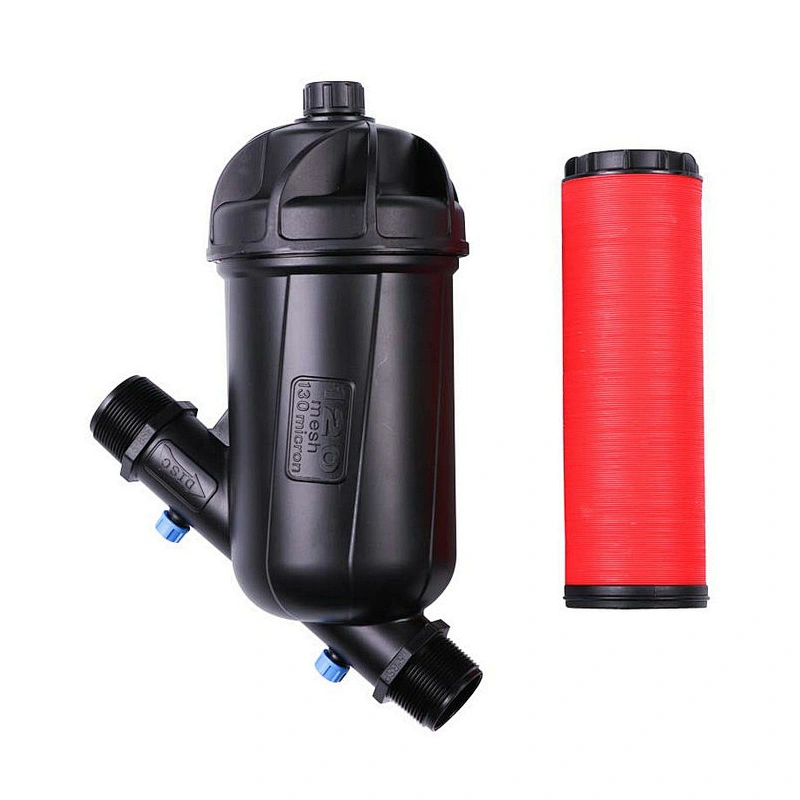

lThe filter core is available in stainless steelmesh and disc to suit different needs.
lEasy to install and operate.
lThis flow plastic filter is especially suitable for small area such as supporting fertilization system, greenhouse, landscaping and garden irrigation.
| Item No. | Description | Size | Interface mode | Filter element | Filter grade | Maximum working pressure | Maximum flow rate |
| DFS-Y75/A | Disc filter | 2-1/2" | male thread | Lamination/Disc | 120mesh | 8Kg/cm2 | 13m3/h |
| DFS-Y63/A | 2" | male thread | |||||
| DFS-Y50/A | 1-1/2" | male thread | 10m3/h | ||||
| DFS-Y40/A | 1-1/4" | male thread | 8m3/h | ||||
| DFS-T50/A | 1-1/2"male thread | 6Kg/cm2 | 10m3/h | ||||
| DFS-Y32/A | 1" | male thread | 3m3/h | ||||
| DFS-Y25/A | 3/4" | male thread | 3m3/h | ||||
| Pic | Item No. | Description | Packing (Pcs) | Measurement (Cm) | G.W (Kgs) |
 | DFS-Y75/A | 2-1/2"Disc filter,120mesh | 1/4 | 55*36*30 | 8 |
| DFS-Y63/A | 2"Disc filter,120mesh | 1/8 | 55*36*30 | 9 | |
| DFS-Y50/A | 1-1/2"Disc filter,120mesh | 1/10 | 55*36*30 | 9 | |
| DFS-Y40/A | 1-1/4"Disc filter,120mesh | 1/10 | 55*36*30 | 9 | |
 | DFS-Y75/M | 2-1/2"Mesh filter,120mesh | 1/4 | 55*36*30 | 7 |
| DFS-Y63/M | 2"Mesh filter,120mesh | 1/8 | 55*36*30 | 8 | |
| DFS-Y50/M | 1-1/2"Mesh filter,120mesh | 1/10 | 55*36*30 | 7 | |
| DFS-Y40/M | 1-1/4"Mesh filter,120mesh | 1/10 | 55*36*30 | 7 | |
 | DFS-T50/A | 1-1/2"Disc filter,120mesh | 1/10 | 55*36*28 | 10 |
 | DFS-T50/M | 1-1/2"Mesh filter,120mesh | 1/10 | 55*36*28 | 7 |
| Small flow plastic filter | |||||
 | DFS-Y32/A | 1"Disc filter,120mesh | 1/40 | 54*35*28 | 12 |
| DFS-Y25/A | 3/4"Disc filter,120mesh | 1/40 | 54*35*28 | 12 | |
 | DFS-Y32/M | 1"Mesh filter,120mesh | 1/40 | 54*35*28 | 9 |
| DFS-Y25/M | 3/4"Mesh filter ,120mesh | 1/40 | 54*35*28 | 9 | |
