- Name:greenhouse drip irrigation system for sale
- Usage:Garden Water Irrigation
- Flow rate:16L/h
- Working pressure:1-1.5bar
- Minimum number of filters:more than 120 mesh
- Color:black Green Blue
- three flow options:4L/H,8L/H, 16L/H
- pressure compensation:0.7-3.5 bar
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFSGG
- Model Number:DDR16G

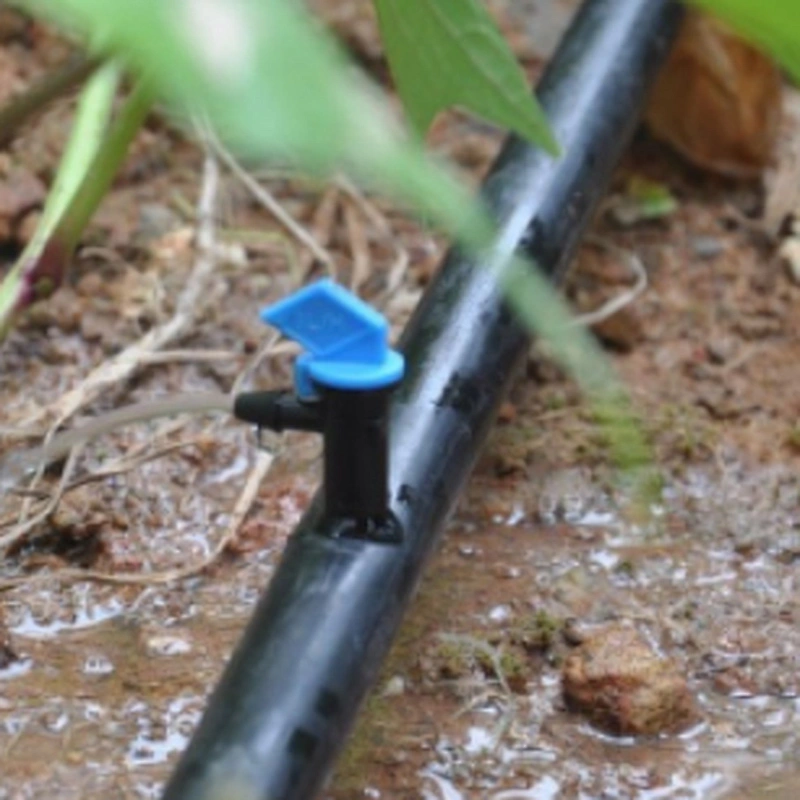

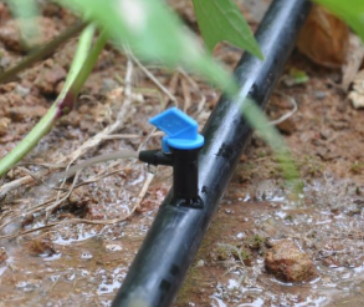

Removable and washable dripper
Features
lMade of PP
lThe slanting barb is inserted into the water inlet for easy insertion of the LDPE tube for irrigation.
lThe flag handle can be removed for easy cleaning.
lLabyrinth wide flow channel, full turbulence, good anti-clogging performance.
lProduced with high-quality raw materials, it has the characteristics of anti-corrosion, anti-ultraviolet and anti-aging.
lThe rated working pressure is from 1 bar to 1.5 bar. The lower the pressure, the lower the flow rate. The higher the pressure, the higher the flow rate.
lIt is easy to install and can be connected directly to a 5 or 7mm hose or directly punched in a LDPE pipe for irrigation.
lPressure compensation range: 0.7-3.5bar
lMinimum number of filters:more than 120 mesh
lThere are 4L/h, 8L/h, 16L/h three flow options to meet different irrigation needs
Product Usage
lCan be widely used in orchards, greenhouses, gardening, greening and other crop irrigation
Technical Parameter
Products Description | Flow rate | Pressure(MPa)VS Flow rate(L/h) | ||||||
0.07 | 0.10 | 0.15 | 0.20 | 0.25 | 0.30 | 0.35 | ||
Removable and washable dripper | 4L/h | 3.6 | 4.0 | 4.2 | 4.5 | 4.7 | 5.1 | 5.5 |
8L/h | 7.2 | 8.0 | 8.5 | 9.1 | 9.4 | 10.2 | 11.3 | |
16L/h | 14.9 | 16.0 | 17.1 | 17.9 | 18.6 | 19.7 | 21.6 | |
| Pic | Item No. | Description | Packing (Pcs) | Measurement (Cm) | G.W (Kgs) |
 | DDR4B | Removable and washable dripper,1/4",Black,4L/h | 100/5000 | 54*35*28 | 8 |
| DDR8E | Removable and washable dripper,1/4",Blue,8L/h | 100/5000 | 54*35*28 | 8 | |

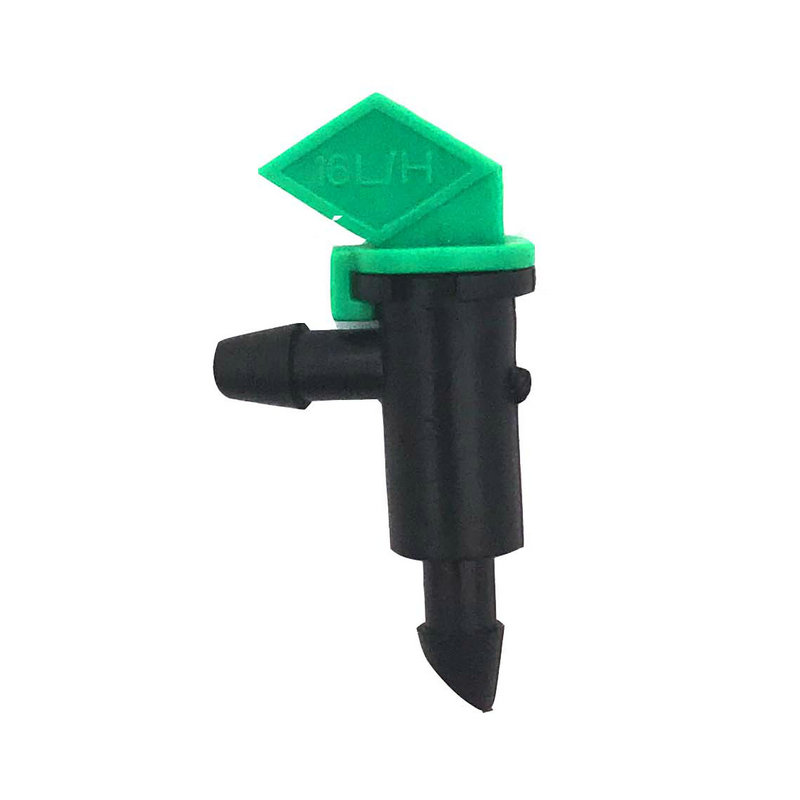

| DDR16G | Removable and washable dripper,1/4",Green,16L/h | 100/5000 | 54*35*28 | 8 |
