• Product name:plastic dropper
• Packing(pcs):100/5000
• Measurement(cm):54*35*28
• G.W(kgs):8
• Feature:Easy to Install
• Application:Agriculture Drip Irrigation
• Packing:Carton
• Surface Handling:plastic
• Industrial Use:agriculture
• Sealing Type:Dropper
• Place of Origin:CN;FUJ
• Base Material:plastic
• Body Material:plastic
• Collar Material:plastic
• Use:other
• Model Number:DPDR2Y
• Brand Name:DDR16G

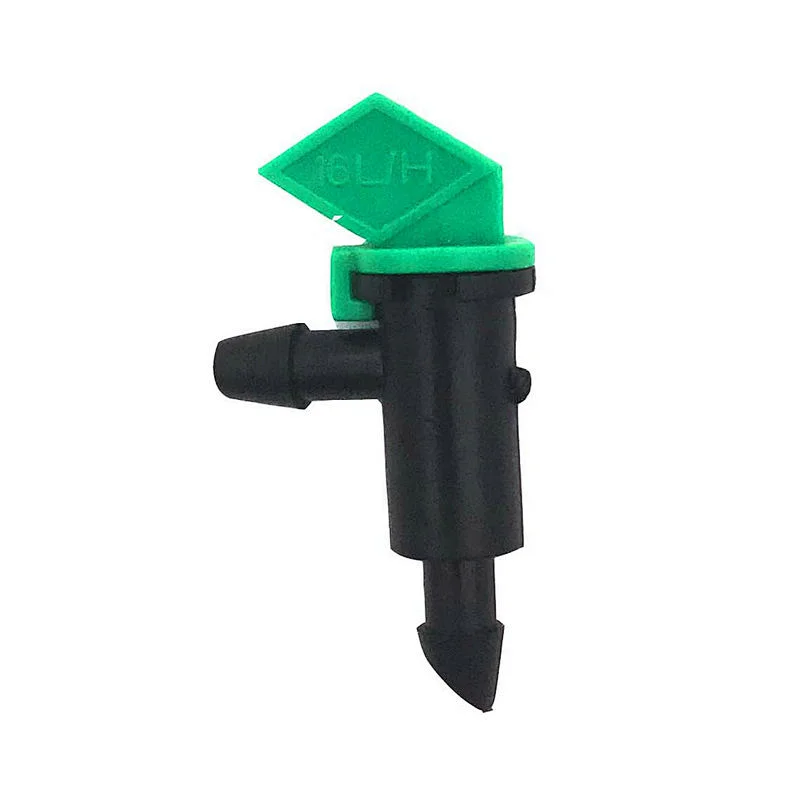

Removable and washable dripper

Features

lMade of PP

lThe slanting barb is inserted into the water inlet for easy insertion of the LDPE tube for irrigation.

lThe flag handle can be removed for easy cleaning.

lLabyrinth wide flow channel, full turbulence, good anti-clogging performance.

lProduced with high-quality raw materials, it has the characteristics of anti-corrosion, anti-ultraviolet and anti-aging.

lThe rated working pressure is from 1 bar to 1.5 bar. The lower the pressure, the lower the flow rate. The higher the pressure, the higher the flow rate.

lIt is easy to install and can be connected directly to a 5 or 7mm hose or directly punched in a LDPE pipe for irrigation.

lPressure compensation range: 0.7-3.5bar

lMinimum number of filters:more than 120 mesh

lThere are 4L/h, 8L/h, 16L/h three flow options to meet different irrigation needs

Product Usage

lCan be widely used in orchards, greenhouses, gardening, greening and other crop irrigation

Technical Parameter

Pic	Item No.	Description	Packing (Pcs)	Measurement (Cm)	G.W (Kgs)
	DDR4B	Removable and washable dripper,1/4",Black,4L/h	100/5000	54*35*28	8
	DDR8E	Removable and washable dripper,1/4",Blue,8L/h	100/5000	54*35*28	8
	DDR16G	Removable and washable dripper,1/4",Green,16L/h	100/5000	54*35*28	8
