- Product name:drip irrigation pipe t
- Application:Irrigation
- Diameter:16mm
- Color:Black
- Working pressure:0.4Mpa
- Roll length:500
- Feature:Flexible
- Certification:ISO9001
- Flow rate:2L/h, 3.2L/h
- Wall thickness:0.6mm
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:ICPTB1606200

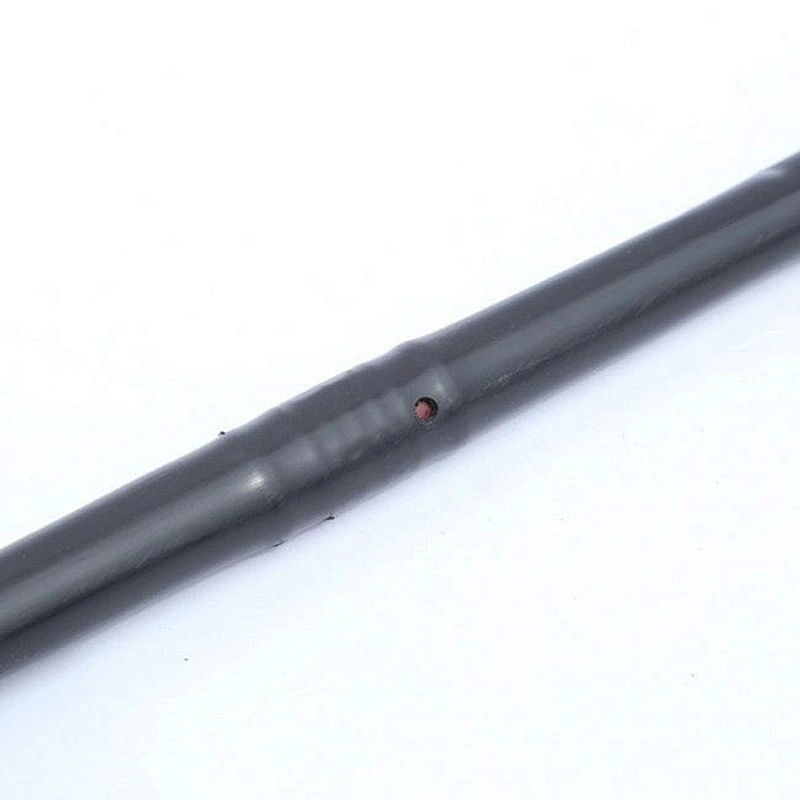

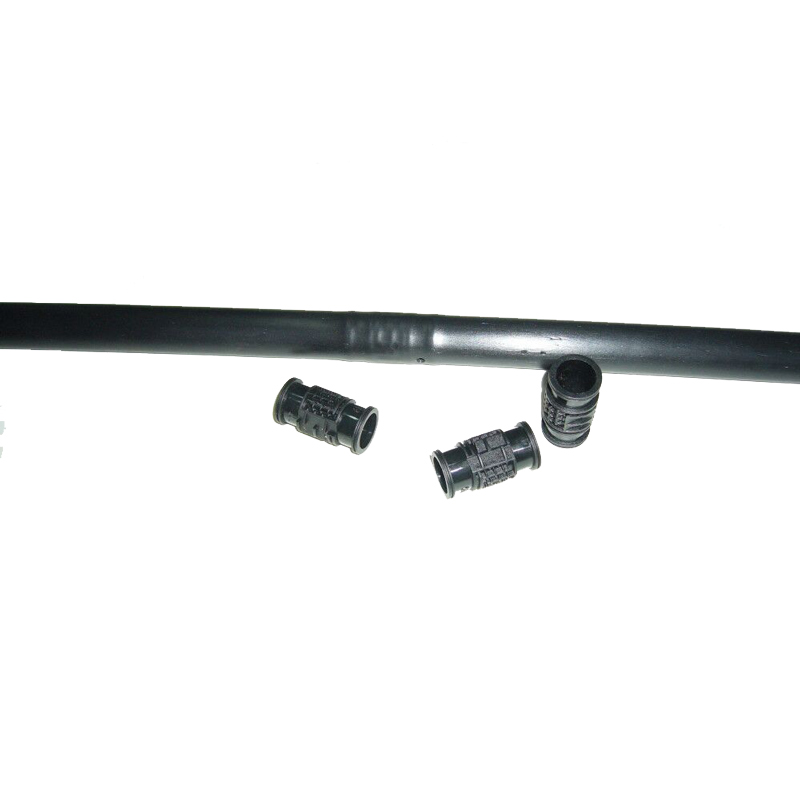

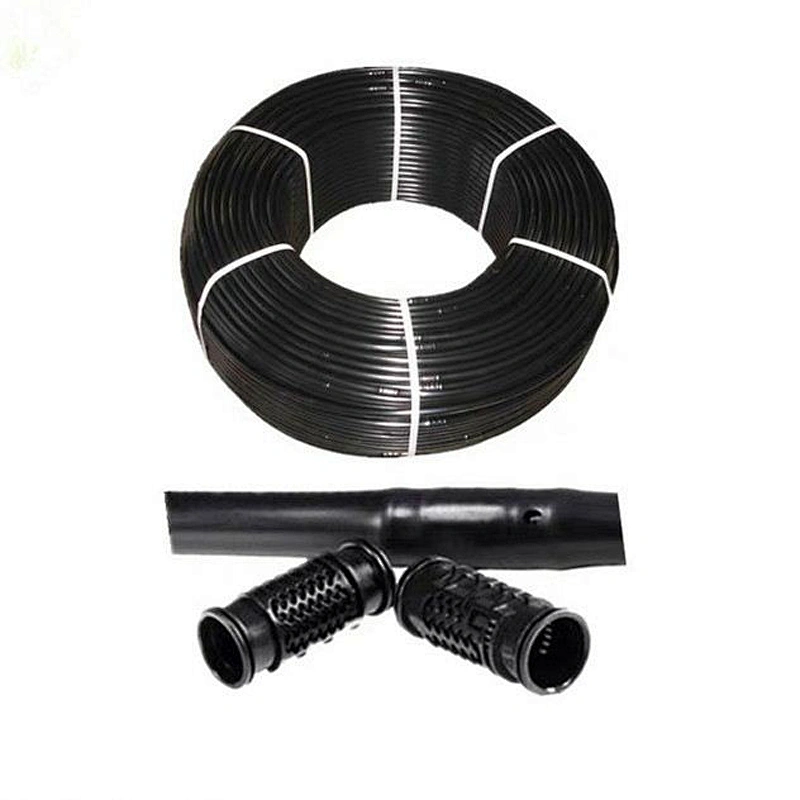

Pressure compensated inner inlay drip irrigation pipe
Feature
1.High anti-blocking performance
2.Irrigation uniformity
3.High toughness
4.Strong aging resistance
5.Uvioresistant
6.Service life: 5-10 years
7.Obvious water saving and production increase
Product description
Mainly used as branch line in Irrigation system. New style wide and long flow path ,smooth flow ,self-rinse, Anti-clogging mad of highest grade polyethylene resins with UV additives ,anti-aging and anti-corrosion additives which make it more durable.The most efficient drip line ,layout length can be longer.
Pic | Item NO. | Description | M/Roll | Measurement (Cm) | G.W (Kg) | |||||
Name | Dia | Thickness | Dripper Spacing | Flow Rate | ||||||
ICPTB1606200 | Inlaid cylindrical pressure compensation drip irrigation pipe | 16mm | 0.6mm | 200mm | 2L/h,3.2L/h | 500 | Dn80*30 | 18 | ||
Pressure compensated dripper embedded cylindrical drip irrigation pipe recommended horizontal floor laying length
Pressure(mpa) | flow rate(L/h) | Drop spacing(m) | |||||
0.3 | 0.4 | 0.5 | 0.6 | 0.75 | 1 | ||
1.0 | 2.2 | 59.0 | 64.5 | 76.5 | 88.4 | 104.5 | 129.2 |
1.5 | 67.2 | 85.8 | 102.0 | 118.2 | 139.4 | 172.6 | |
2.0 | 79.1 | 100.3 | 119.0 | 137.7 | 163.2 | 202.3 | |
2.5 | 88.4 | 111.3 | 133.5 | 153.0 | 181.9 | 225.3 | |
3.0 | 95.2 | 120.7 | 144.5 | 166.6 | 197.2 | 243.9 | |
(Note:Inlet pressure of 0.1 mpa, recommended for different flow rates when the ground is flat )
Pressure VS flow rate
flow rate | pressure(mpa)VS flow rate(L/h) | ||||||
0.05 | 0.08 | 0.12 | 0.15 | 0.20 | 0.25 | 0.30 | |
2.2L/h | 1.9 | 1.95 | 2.1 | 2.3 | 2.2 | 2.3 | 2.4 |
(working pressure suggestion: 0.08-0.12Mpa )
