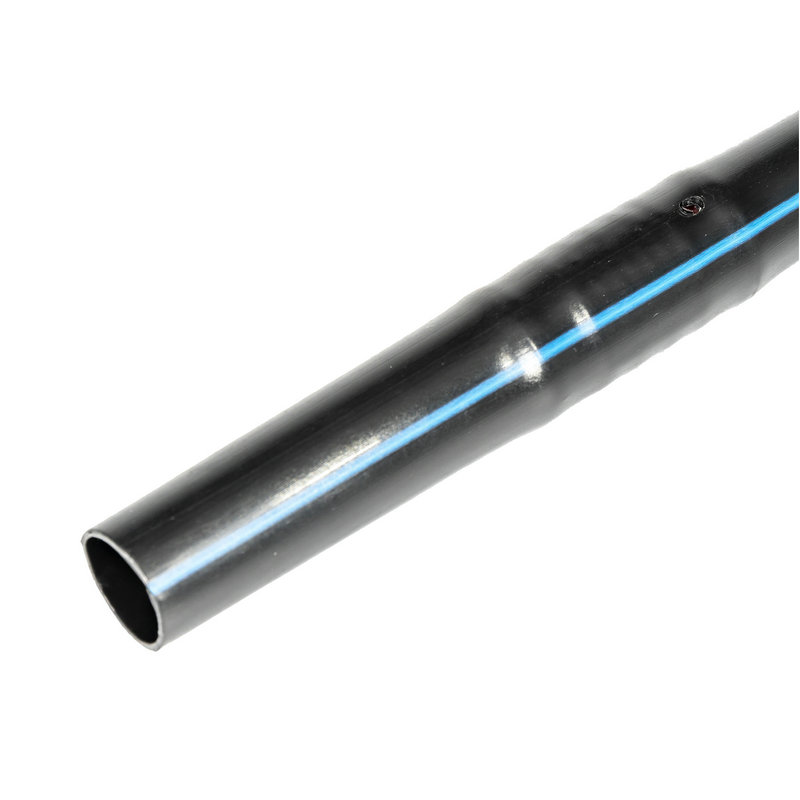

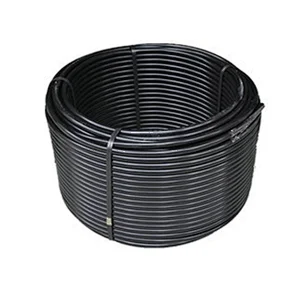

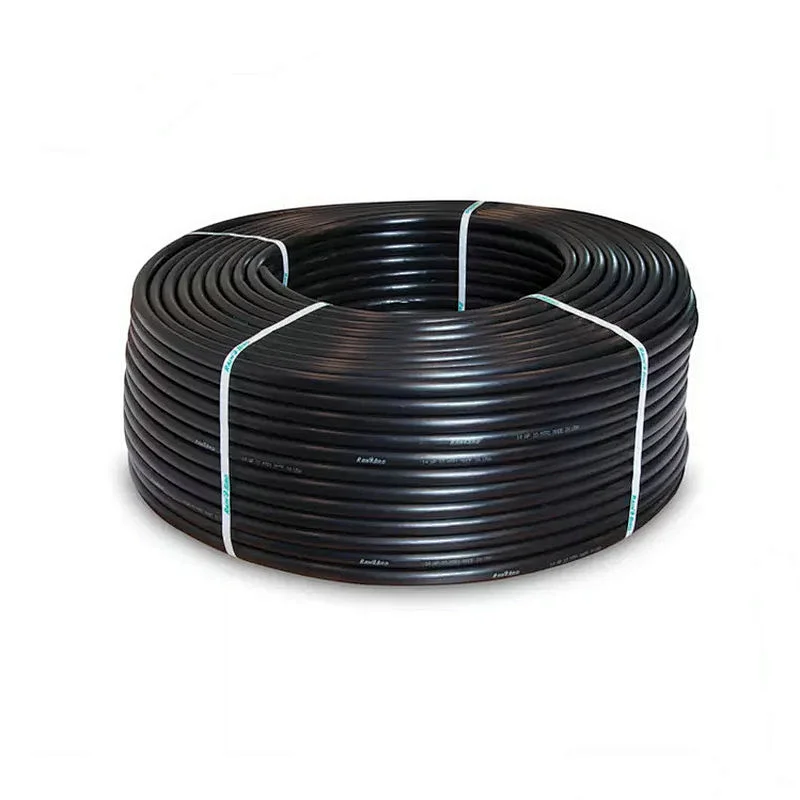

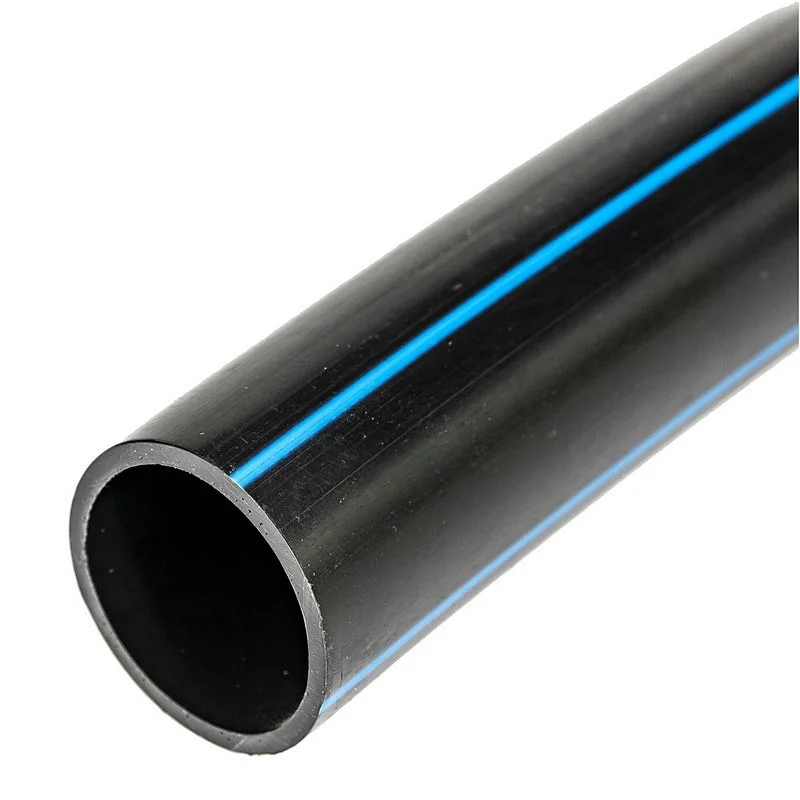

• Product name:irrigation drip tapes for fruit trees
• Application:LDPE tube
• Feature:plastic irrigation pipe
• Size:16mm-800mm
• Usage:Water-saving Irrigation
• Color:black
• Type:Other Watering & Irrigation
• Material:plastic
• Place of Origin:CN;FUJ
• Brand Name:DFS
• Model Number:FS-DIT-005

Flow Changes	Flow Rate	Drop spacing (m)
		0.1	0.2	0.3	0.4	0.5
±5%	1.38L/h	36	51	63
±7.5%		43	59	72
±10%		52	68	83
±5%	2.2L/h		63	75	85
±7.5%			74	86	99
±10%			65	96	119
±5%	3.2L/h			51.0	65.0	83.0
±7.5%				59.0	73.0	87.0
±10%				64.0	81.0	94.0
(The inlet pressure is 0.1Mpa. When the ground is flat, different flow lengths are recommended.)

Flow Rate	Pressure(MPa)VS Flow Rate(L/h)
	0.02	0.04	0.06	0.08	0.10	0.12
1.38L/h	0.68	0.95	1.17	1.29	1.46	1.59
2.2L/h	1.19	1.61	1.96	2.20	2.35	2.74
3.2L/h	1.70	2.32	2.77	3.13	3.32	3.66
(Recommended work pressure:0.08-0.10Mpa)

Pic	Size(mm)	0.25mpa Wall thickness(mm)	Packing M/Roll	Measurement (Cm)	G.W (Kgs)	0.4mpa Wall thickness (mm)	Measurement (Cm)	G.W (Kgs)
	16φ	1.0	500	Dn80*30	23	1.2	Dn80*30	27
	20φ	1.2	200	Dn70*30	14	1.5	Dn75*30	17
	25φ	1.4	200	Dn95*30	20	1.9	Dn100*30	27
	32φ	1.6	200	Dn115*38	30	2.4	Dn115*38	41
	40φ	1.9	100	Dn115*36	40	3.0	Dn115*36	55
	50φ	3.0	100	Dn115*36	51	3.7	Dn115*36	63
	63φ	3.6	100	Dn165*36	57	4.7	Dn165*36	67
