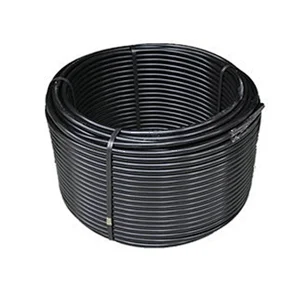

drip tape

Product name:drip tape
Application:Irrigation
Diameter:Cusomers' Request
Color:Black
Roll length:500-1000-1500-2000-2500m/roll
Feature:Flexible
Certification:ISO9001
Wall thickness:Custimzed
Type:Other Watering & Irrigation
Material:plastic
Place of Origin:CN;FUJ
Brand Name:DFShou
Model Number:DT-001

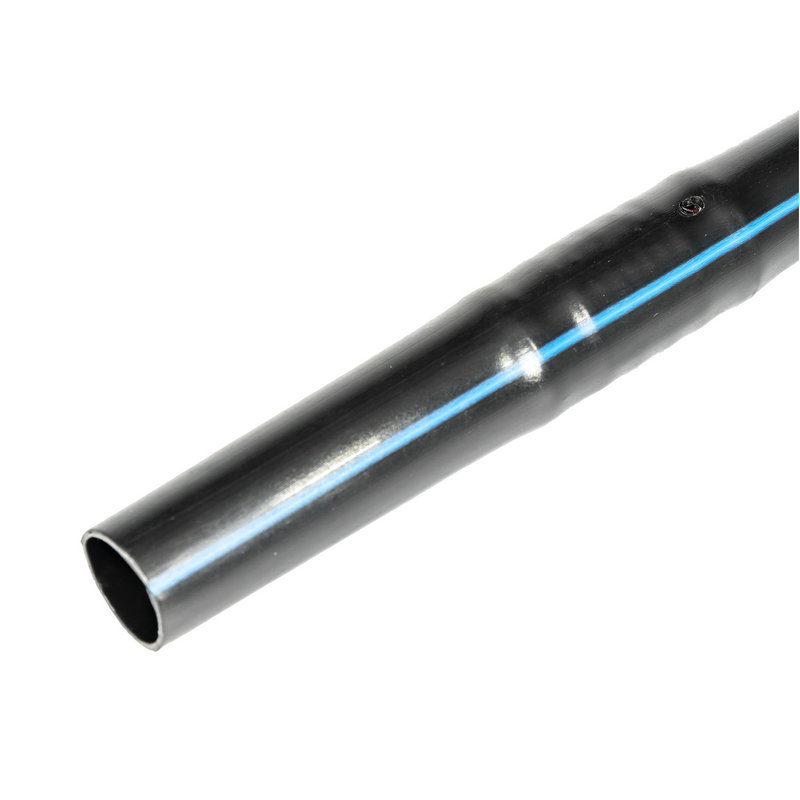

drip tape

Features

lMade of PE

lThe inner dripper has small deviation and uniform flow.

lMade of high-quality materials and advanced production technology.

lIt is corrosion-resistant, anti-aging and durable.

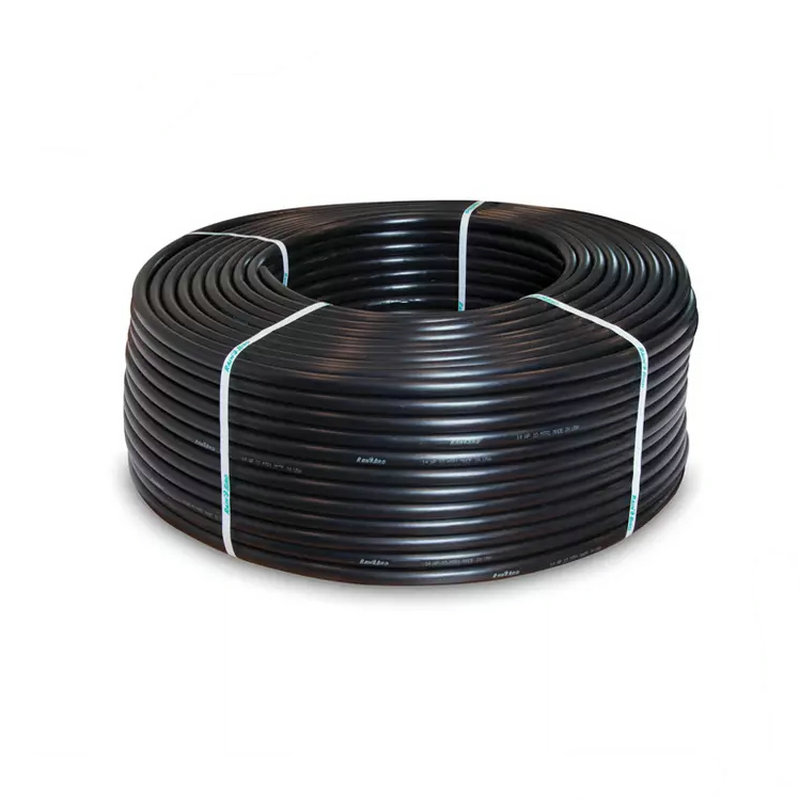

lThe drip tape is one-shot extrusionwithlight weight, and flat roll package for easy transportation and storage.

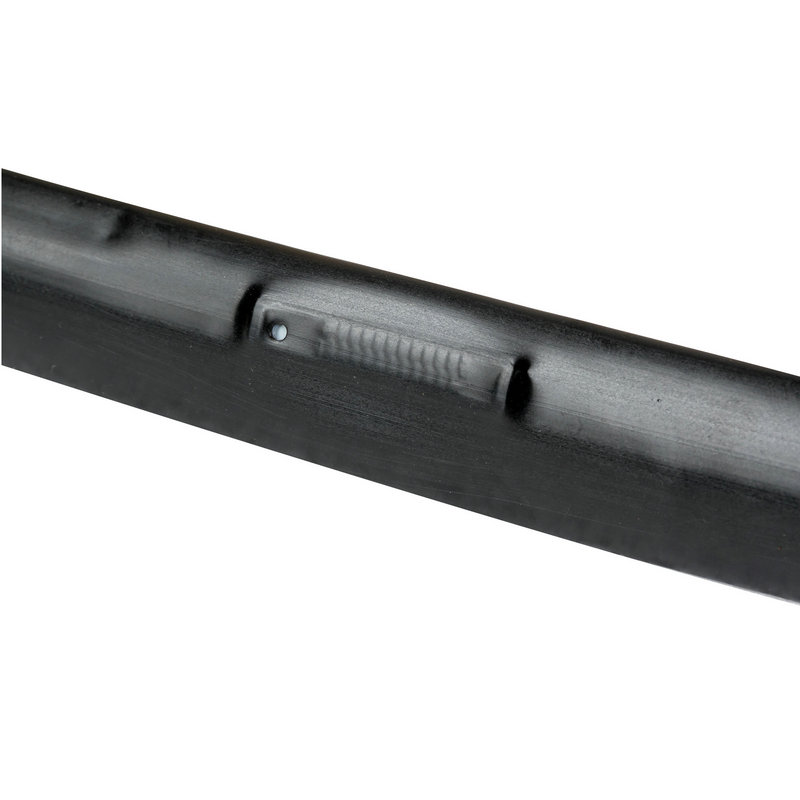

lInlaid flat dripperwithnewstylewide and long flow channel, full turbulent flow, self-flushingandgood anti-clogging performance.

lThe head lossis small and the laying length is long.

Parameters

lDrip tape diameter: 16mm

lDrip tape wall thickness: 0.2,0.3,0.4mm

lWorking pressure: 50-100kpa (0.2mm thickness)

n50-150kpa(0.3,0.4mm thickness)

lDrop spacing: 200, 300, 400 mm

lDripper rated flow; 1.38, 2.2, 3.0L/h

lTotal roll : 1000, 1500, 2000m

(Can be set arbitrarily within 0.1-2.5m according to user requirements)

Product Usage

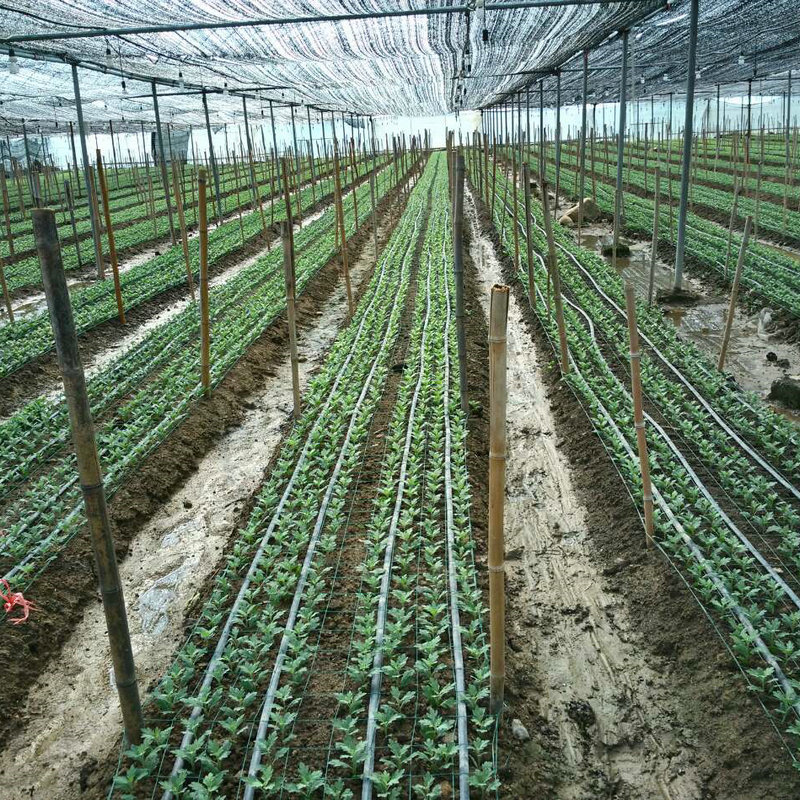

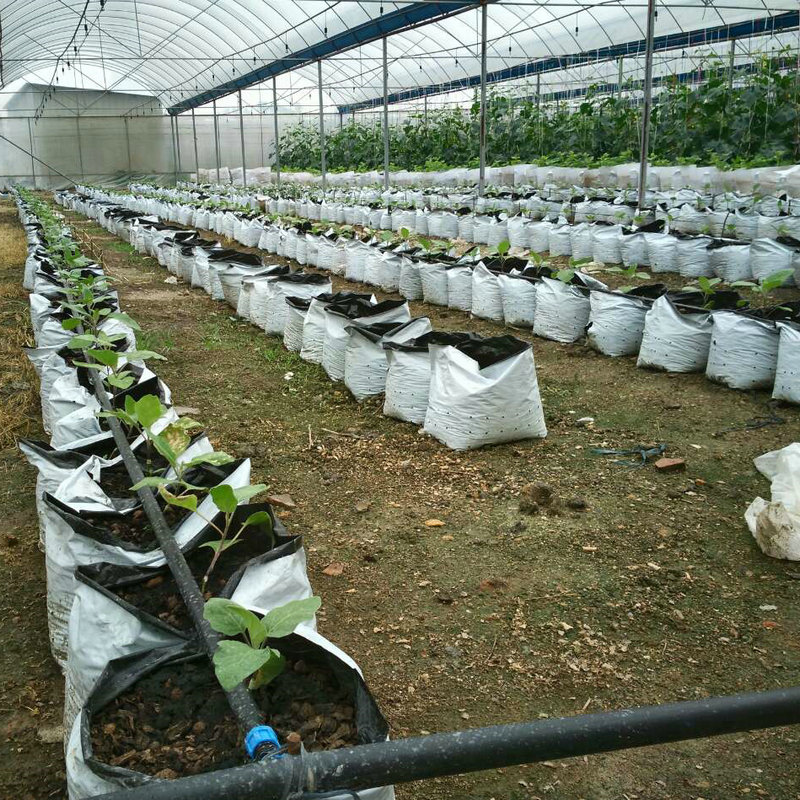

lWidely used in greenhouses, greenhouses, fruit trees, field crops and other fields

lReduce soil phlegm, increase soil permeability, and promote root development

lApplying water and fertilizer to increase fertilizer using efficiency

lEspecially for greenhouses, it can reduce air temperature by 20%-30%, reducing the occurrence of pests and diseases, and increase the low temperature by 2-3 degrees Celsius.The crop is listed in advance for about a week .

Notes

lRecommended work pressure : 0.8-1.0bar.

lAll holes are laid up.

lMust be equipped with 120mesh filter rating.

lHorizontal laying the tape

lAvoid being damaged by insects and mice

lDrip irrigation under transparent film should prevent the water droplets from forming a convex mirror effect, and burn the surface under sunlight.

lDue to the thin wall thickness, mechanical damage due to overstretching should be prevented during laying

Recommended horizontal laying length

flow changes	Drop spacing 0.20m		Drop spacing 0.30m		Drop spacing 0.40m
flow changes	2.2L/h	3.2L/h	2.2L/h	3.2L/h	2.2L/h	3.2L/h
±5%	47	32	72	51	102	89
±7.5%	58	39	81	59	113	102
±10%	64	43	87	64	119	109

(If Inlet pressure is 0.1Mpa,different flow rates are recommended when the ground is flat.)

thickness	flow rate	inner diameter	outer diameter	max working pressure	Flow deviation(CV)
thickness	flow rate	inner diameter	outer diameter	max working pressure	2.2L/H	3.2L/H
0.20mm	2.2L/h or 3.2L/h	15.8mm	16.2mm	0.13MPa	1.50%	2.40%
0.30mm	2.2L/h or 3.2L/h	15.8mm	16.4mm	0.15MPa	1.50%	2.40%
0.40mm	2.2L/h or 3.2L/h	15.8mm	16.6mm	0.18MPa	1.50%	2.40%

Pressure VS flow rate

flow rate	pressure(MPa)VS flow rate(L/h)
flow rate	0.05	0.08	0.12	0.15	0.20	0.25
2.2L/h	1.32	1.71	1.91	2.41	2.83	3.34
3.2L/h	1.83	2.35	2.67	3.33	3.95	4.28

Pic	Item No.	Description					M/roll	Measurement (Cm)	G.W (Kgs)
Pic	Item No.	Name	Dia	Thickness	Dripper Spacing	Flow rate	M/roll	Measurement (Cm)	G.W (Kgs)
	IPTP1602100	Drip tape	16mm	0.2mm	100mm	1.38L/h,2.2L/h,3.2L/h	1500	Dn50*30	20
	IPTP1602200				200mm		2000	Dn50*30	24
	IPTP1602300				300mm		2000	Dn50*30	21
	IPTP1602400				400mm		2000	Dn50*30	20
	IPTP1602500				500mm		2000	Dn50*30	20
	IPTP1603100			0.3mm	100mm		1500	Dn50*30	24
	IPTP1603200				200mm		1500	Dn50*30	22
	IPTP1603300				300mm		1500	Dn50*30	21
	IPTP1603400				400mm		1500	Dn50*30	20
	IPTP1603500				500mm		1500	Dn50*30	20
	IPTP1604100			0.4mm	100mm		1000	Dn50*30	22
	IPTP1604200				200mm		1000	Dn50*30	19
	IPTP1604300				300mm		1000	Dn50*30	18
	IPTP1604400				400mm		1000	Dn50*30	18
	IPTP1604500				500mm		1000	Dn50*30	17
Note: If other dripper spacing and wall thickness are required, it can be customized.
