- Product name:t drip tape
- M/Roll:300
- Feature:Easy to Install
- Color:black
- Application:Irrigation
- Diameter:16mm
- Roll length:1000, 1500, 2000m
- Certification:ISO9001
- Type:Other Watering & Irrigation
- Commercial Buyer:Restaurants
- Commercial Buyer:Fast Food and Takeaway Food Services
- Commercial Buyer:Food & Beverage Stores
- Commercial Buyer:Food & Beverage Manufacture
- Season:Everyday
- Room Space Selection:Not Support
- Occasion Selection:Not Support
- Holiday Selection:Not Support
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFSGG
- Model Number:IPTP1602300

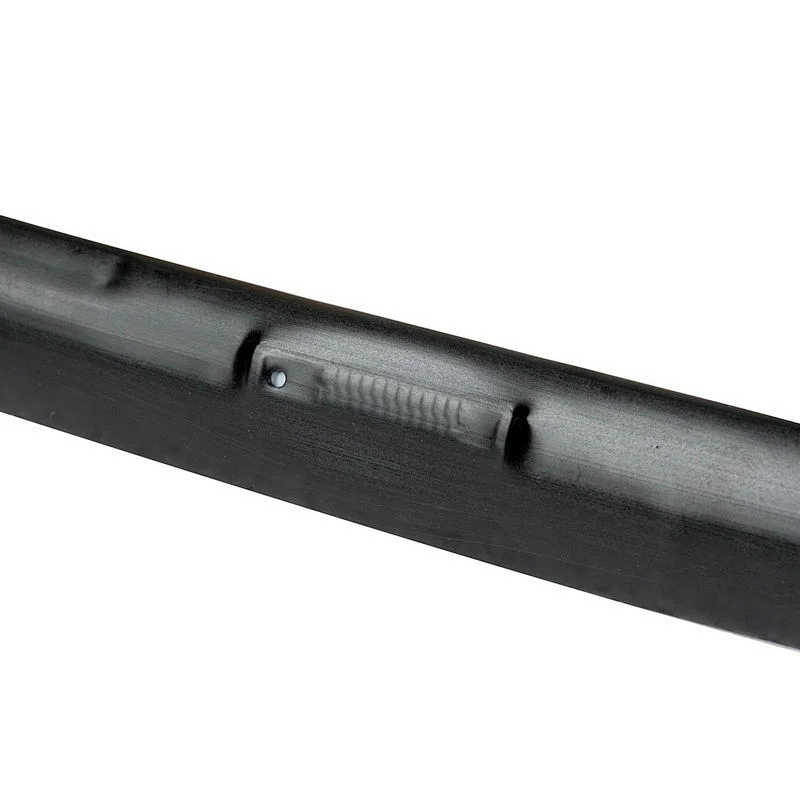

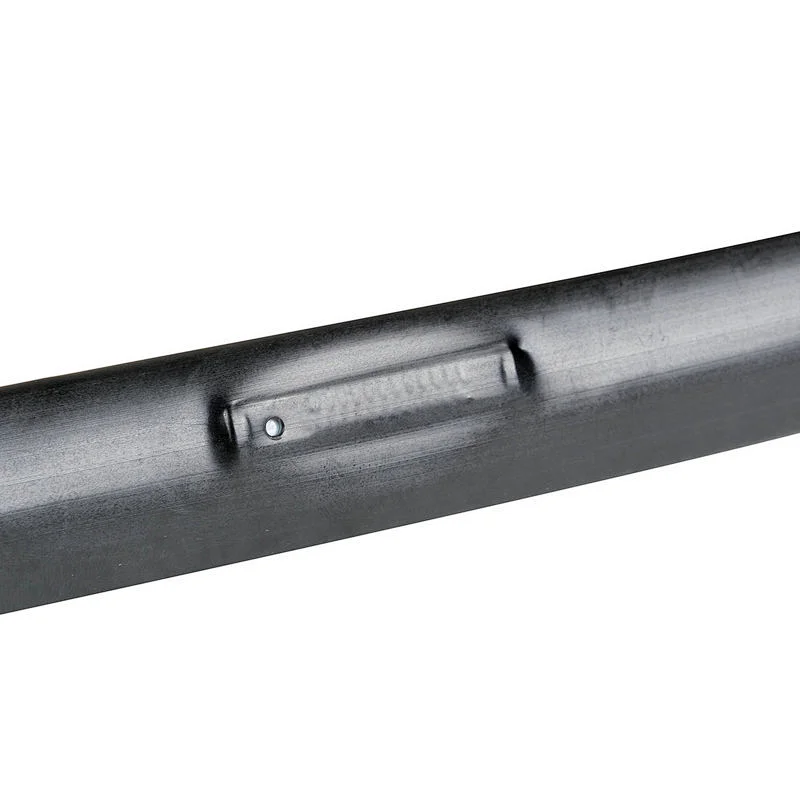

flat Emitter inlaid flat drip irrigation tape
Features
lMade of PE
lThe inner dripper has small deviation and uniform flow.
Parameters
lDrip tape diameter: 16mm
lDrip tape wall thickness: 0.2,0.3,0.4mm
lWorking pressure: 50-100kpa (0.2mm thickness)
50-150kpa(0.3,0.4mm thickness)
lDrop spacing: 200, 300, 400 mm
lDripper rated flow; 1.38, 2.2, 3.0L/h
lTotal roll : 1000, 1500, 2000m
(Can be set arbitrarily within 0.1-2.5m according to user requirements)
Product Usage

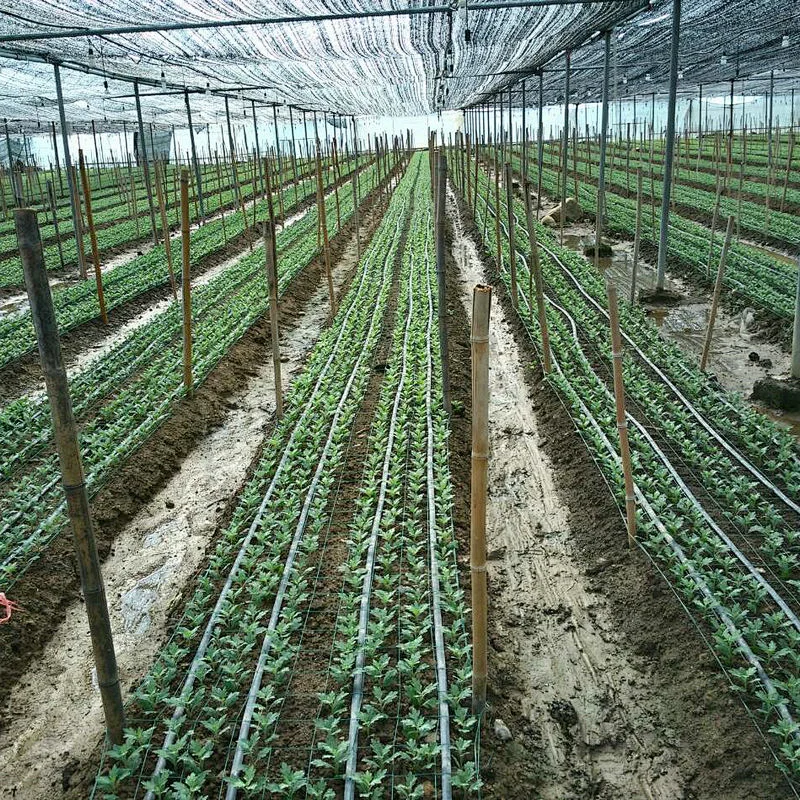

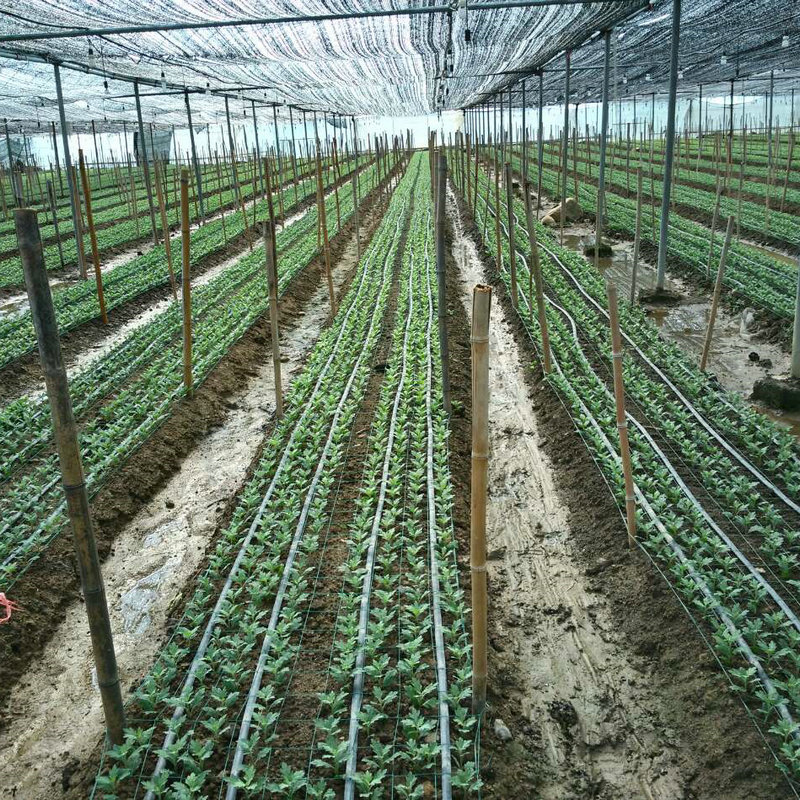

lWidely used in greenhouses, greenhouses, fruit trees, field crops and other fields
lReduce soil phlegm, increase soil apermeability, and promote root development
lApplying water and fertilizer to increase fertilizer using efficiency
lEspecially for greenhouses, it can reduce air temperature by 20%-30%, reducing the occurrence of pests and diseases, and increase the low temperature by 2-3 degrees Celsius.The crop is listed in advance for about a week .
ADVANTAGE
1. With Superior VB and excellent uniformity.
2. With new type of labyrinth passages, excellent clogging resistance.
3. Excellent Pressure-reducing, longer for laying length.
4. Produced by Good Quality of Raw material with Anti-corrosion, Anti-UV and Anti-aging.

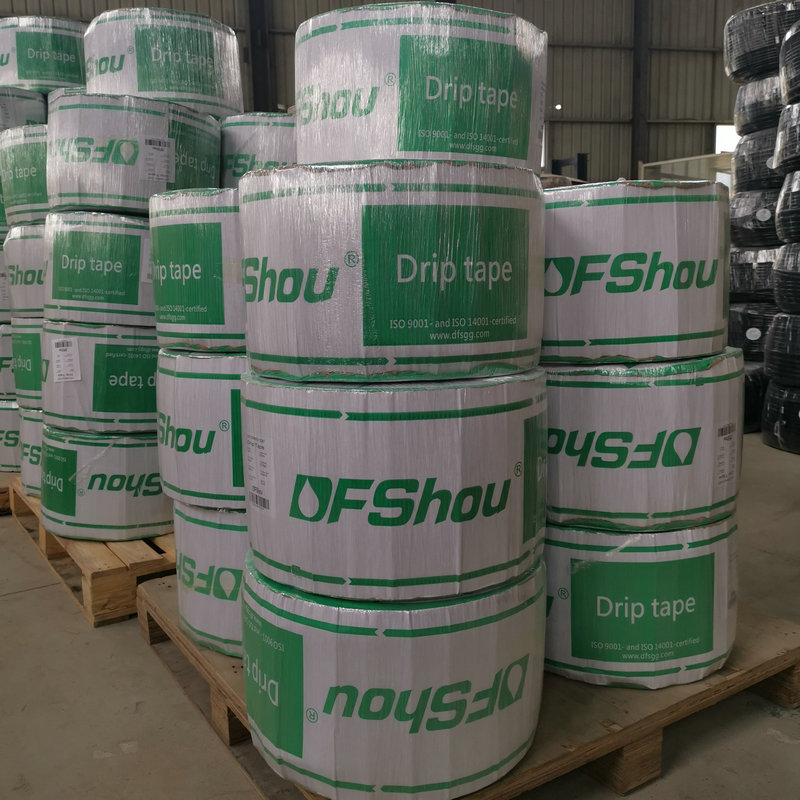

5.Extruded with Emitter inside, light weight and packed by roll, good for transportation.
6. Recommend Working pressure is 0.8 bar to 1.0 bar.
7. All the holes of Emitters upward. Lay in line and levelly.
8.120 mesh filtration is necessary
Recommended horizontal laying length
flow changes | Drop spacing 0.20m | Drop spacing 0.30m | Drop spacing 0.40m | |||
2.2L/h | 3.2L/h | 2.2L/h | 3.2L/h | 2.2L/h | 3.2L/h | |
±5% | 47 | 32 | 72 | 51 | 102 | 89 |
±7.5% | 58 | 39 | 81 | 59 | 113 | 102 |
±10% | 64 | 43 | 87 | 64 | 119 | 109 |
(If Inlet pressure is 0.1Mpa,different flow rates are recommended when the ground is flat.)
thickness | flow rate | inner diameter | outer diameter | max working pressure | Flow deviation(CV) | |
2.2L/H | 3.2L/H | |||||
0.20mm | 2.2L/h or 3.2L/h | 15.8mm | 16.2mm | 0.13MPa | 1.50% | 2.40% |
0.30mm | 2.2L/h or 3.2L/h | 15.8mm | 16.4mm | 0.15MPa | 1.50% | 2.40% |
0.40mm | 2.2L/h or 3.2L/h | 15.8mm | 16.6mm | 0.18MPa | 1.50% | 2.40% |
Pressure VS flow rate
flow rate | pressure(MPa)VS flow rate(L/h) | |||||
0.05 | 0.08 | 0.12 | 0.15 | 0.20 | 0.25 | |
2.2L/h | 1.32 | 1.71 | 1.91 | 2.41 | 2.83 | 3.34 |
3.2L/h | 1.83 | 2.35 | 2.67 | 3.33 | 3.95 | 4.28 |
APPLICATION

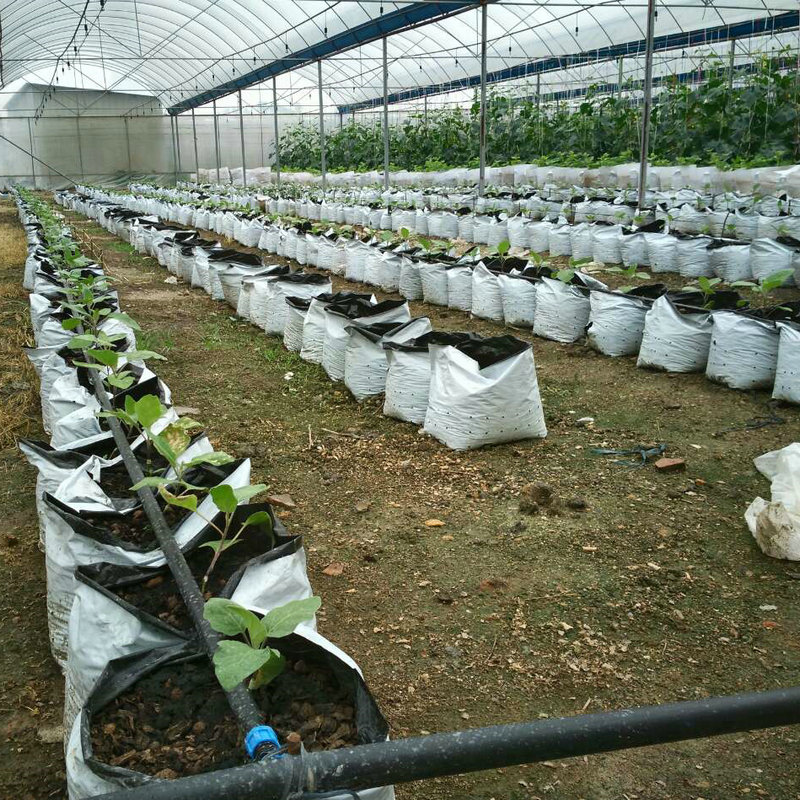

1. Drip irrigation for vegetable, fruit, flower, Chinese herbal and green house crops.
2. Emitter Spacing 10cm is for all crops.
20cm spacing is for vegetable like chili, cut flowers, melon, onion, pepper, potato, strawberry, tomatto.
30cm spacing is for alfalfa, asparagus, banana, broccoli, cauliflower, celery, corn, cotton, cucumber, eggplant, garlic, ginseng, grape, leafy, vegetables, lettuce, onion, pepper, potato, pumpkin, rose, spinach, squash, strawberry, sugarcane, tobacco, tomato, turnip, watermelon, etc
40cm spacing: alfalfa, grape, onion, pepper, potato, sugarcane, tobacco, turnip, watermelon, etc.
50cm spacing: Alfalfa, blueberry, grape, raspberry, soybean, sugarcane, etc.
