- Product name:drip tape 20 cm
- M/Roll:300
- Feature:Easy to Install
- Color:black
- Application:Irrigation
- Diameter:Cusomers' Request
- Roll length:1000, 1500, 2000m
- Certification:ISO9001
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFSGG
- Model Number:IPTP1603400

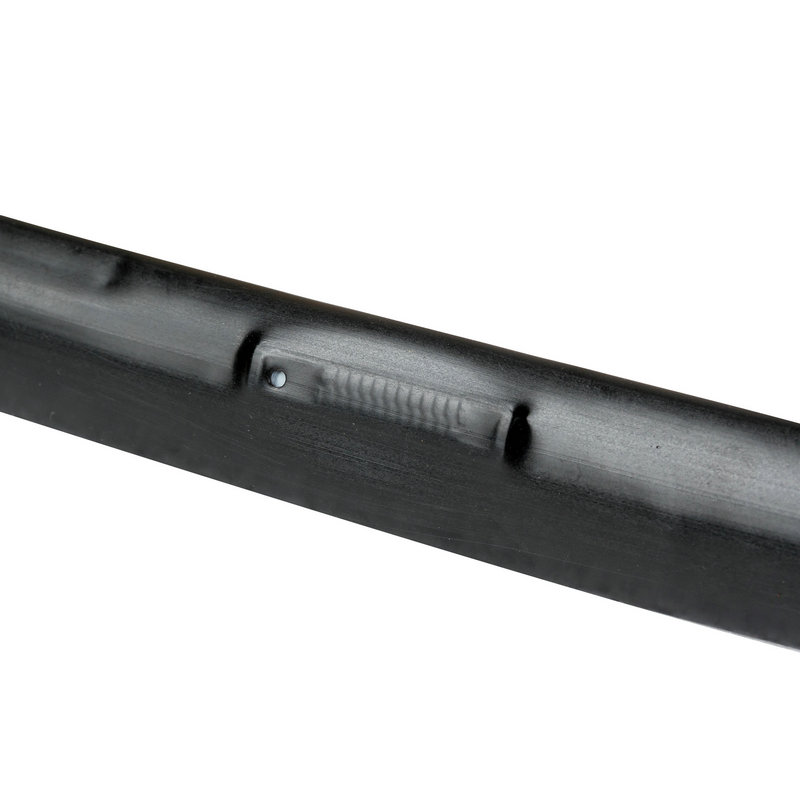

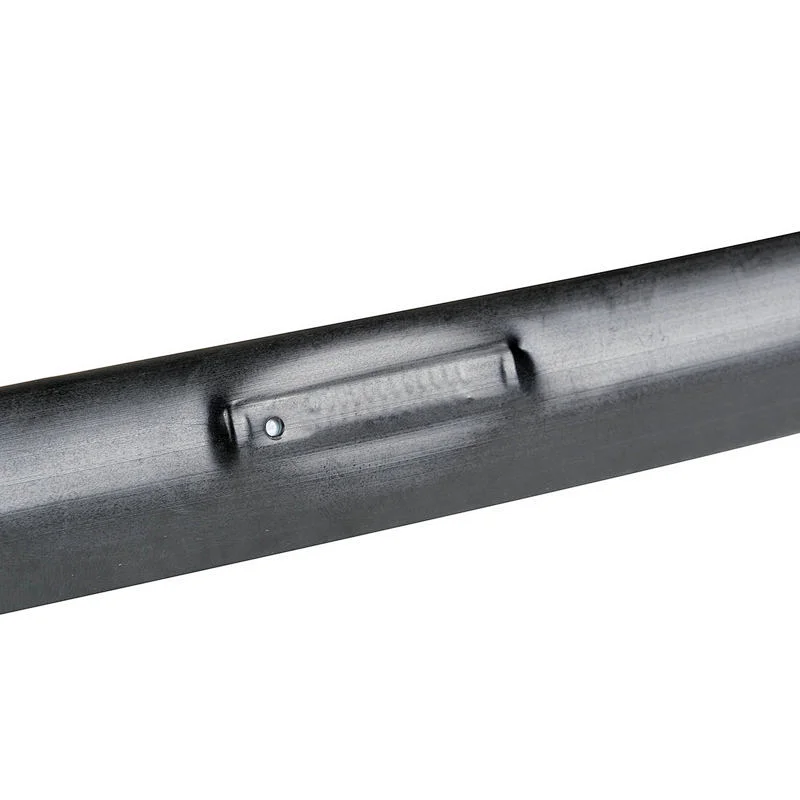

flat Emitter inlaid flat drip irrigation tape
Features
lMade of PE
lThe inner dripper has small deviation and uniform flow.
Quick Details
Type:Other Watering & Irrigation
Material:Plastic
Name:flat Emitter inlaid flat drip irrigation tape with flat drippers
wall thickness : 0.2mm (0.3mm, 0.4mm as choice)
Flow Rate: 1.38L/H, (2L/H, 1L/H ,as choice)
working pressure: 0.25 mpa
Drip Spacing: 30CM. (100cm, 15cm, 20cm, 30cm as choice)
Color:black
Advantage:uniformity of drip, prevent clogging
Application:Vegetable, garden, greenhouse, etc

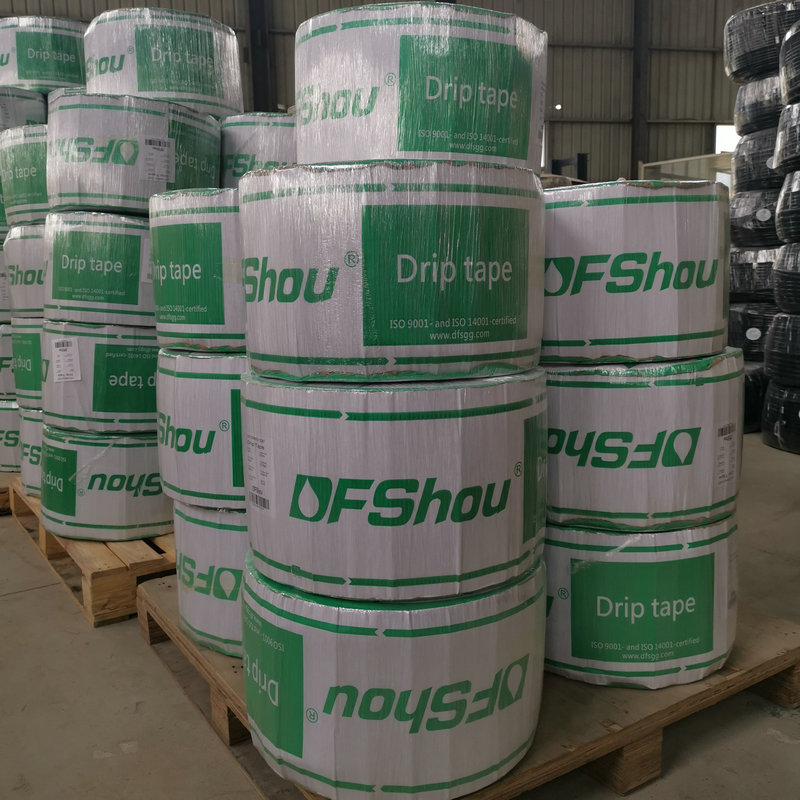

Packing:2000m/roll
MOQ:1 ROLL
Product Usage

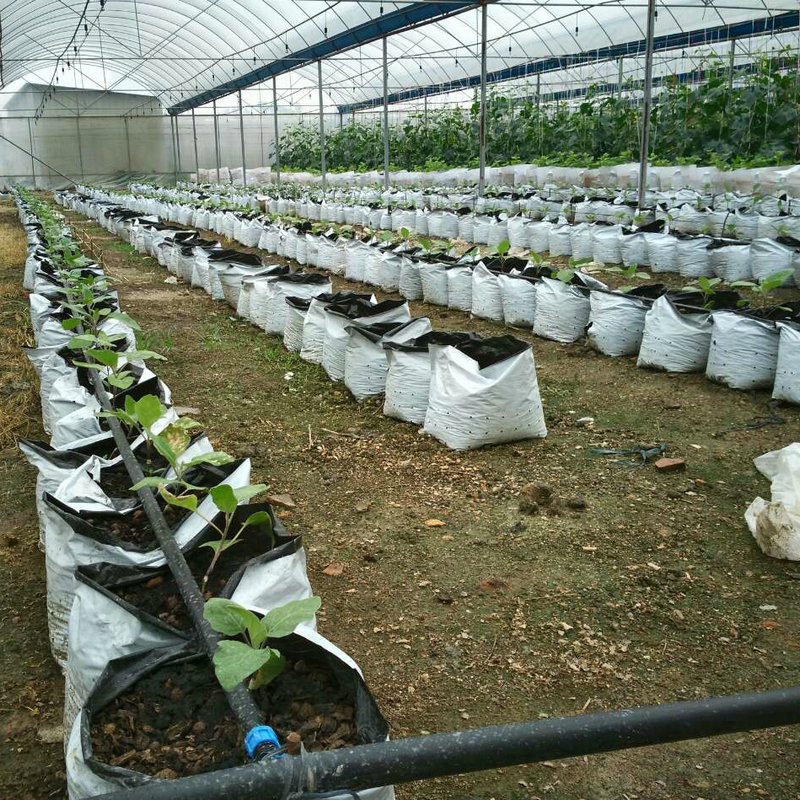

lWidely used in greenhouses, greenhouses, fruit trees, field crops and other fields
lReduce soil phlegm, increase soil apermeability, and promote root development
lApplying water and fertilizer to increase fertilizer using efficiency
lEspecially for greenhouses, it can reduce air temperature by 20%-30%, reducing the occurrence of pests and diseases, and increase the low temperature by 2-3 degrees Celsius.The crop is listed in advance for about a week .
ADVANTAGE
1. With Superior VB and excellent uniformity.
2. With new type of labyrinth passages, excellent clogging resistance.
3. Excellent Pressure-reducing, longer for laying length.
4. Produced by Good Quality of Raw material with Anti-corrosion, Anti-UV and Anti-aging.
5.Extruded with Emitter inside, light weight and packed by roll, good for transportation.
6. Recommend Working pressure is 0.8 bar to 1.0 bar.
7. All the holes of Emitters upward. Lay in line and levelly.
8.120 mesh filtration is necessary
Recommended horizontal laying length
flow changes | Drop spacing 0.20m | Drop spacing 0.30m | Drop spacing 0.40m | |||
2.2L/h | 3.2L/h | 2.2L/h | 3.2L/h | 2.2L/h | 3.2L/h | |
±5% | 47 | 32 | 72 | 51 | 102 | 89 |
±7.5% | 58 | 39 | 81 | 59 | 113 | 102 |
±10% | 64 | 43 | 87 | 64 | 119 | 109 |
(If Inlet pressure is 0.1Mpa,different flow rates are recommended when the ground is flat.)
thickness | flow rate | inner diameter | outer diameter | max working pressure | Flow deviation(CV) | |
2.2L/H | 3.2L/H | |||||
0.20mm | 2.2L/h or 3.2L/h | 15.8mm | 16.2mm | 0.13MPa | 1.50% | 2.40% |
0.30mm | 2.2L/h or 3.2L/h | 15.8mm | 16.4mm | 0.15MPa | 1.50% | 2.40% |
0.40mm | 2.2L/h or 3.2L/h | 15.8mm | 16.6mm | 0.18MPa | 1.50% | 2.40% |
Pressure VS flow rate
flow rate | pressure(MPa)VS flow rate(L/h) | |||||
0.05 | 0.08 | 0.12 | 0.15 | 0.20 | 0.25 | |
2.2L/h | 1.32 | 1.71 | 1.91 | 2.41 | 2.83 | 3.34 |
3.2L/h | 1.83 | 2.35 | 2.67 | 3.33 | 3.95 | 4.28 |
APPLICATION

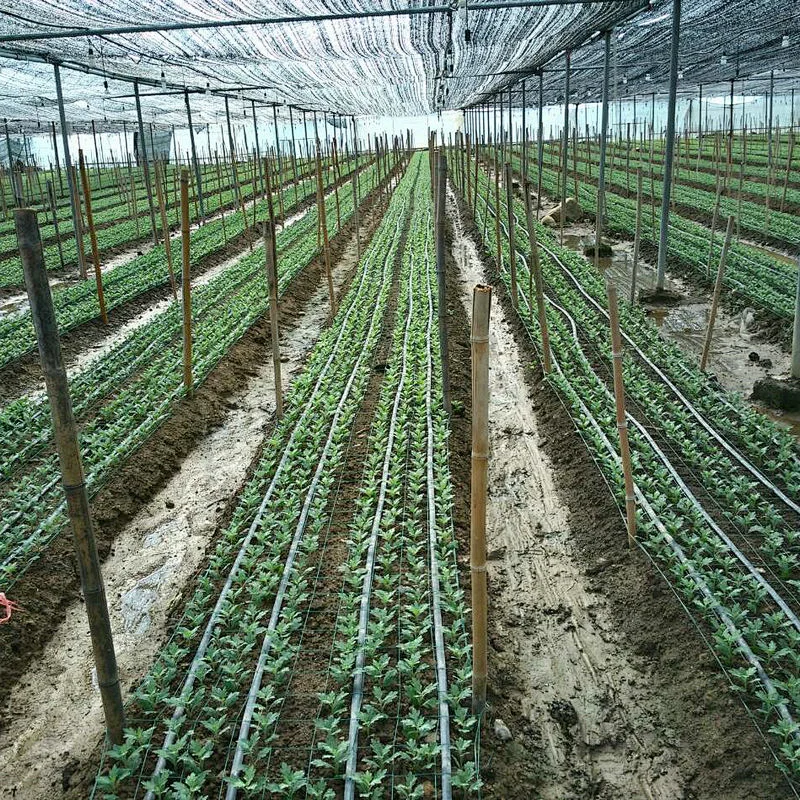

1. Drip irrigation for vegetable, fruit, flower, Chinese herbal and green house crops.
2. Emitter Spacing 10cm is for all crops.
20cm spacing is for vegetable like chili, cut flowers, melon, onion, pepper, potato, strawberry, tomatto.
30cm spacing is for alfalfa, asparagus, banana, broccoli, cauliflower, celery, corn, cotton, cucumber, eggplant, garlic, ginseng, grape, leafy, vegetables, lettuce, onion, pepper, potato, pumpkin, rose, spinach, squash, strawberry, sugarcane, tobacco, tomato, turnip, watermelon, etc
40cm spacing: alfalfa, grape, onion, pepper, potato, sugarcane, tobacco, turnip, watermelon, etc.
50cm spacing: Alfalfa, blueberry, grape, raspberry, soybean, sugarcane, etc.
