- M/Roll:300
- Feature:Easy to Install
- Color:black
- Application:Irrigation
- Diameter:Cusomers' Request
- Roll length:1000, 1500, 2000m
- Certification:ISO9001
- Type:Other Watering & Irrigation
- Material:plastic
- Place of Origin:CN;FUJ
- Brand Name:DFShou
- Model Number:IPTP1602400

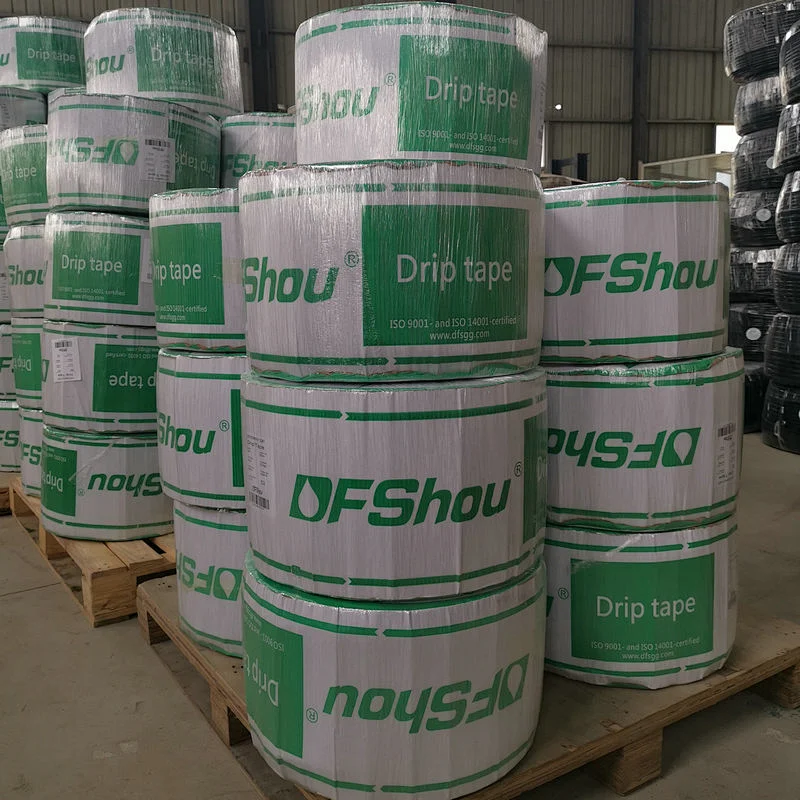

flat Emitter inlaid flat drip irrigation tape
Features
lMade of PE
lThe inner dripper has small deviation and uniform flow.
Parameters
lDrip tape diameter: 16mm
lDrip tape wall thickness: 0.2,0.3,0.4mm
lWorking pressure: 50-100kpa (0.2mm thickness)
50-150kpa(0.3,0.4mm thickness)
lDrop spacing: 200, 300, 400 mm
lDripper rated flow; 1.38, 2.2, 3.0L/h
lTotal roll : 1000, 1500, 2000m
(Can be set arbitrarily within 0.1-2.5m according to user requirements)
Quick Details
Type:Other Watering & Irrigation
Material:Plastic
Name:flat Emitter inlaid flat drip irrigation tape with flat drippers
wall thickness : 0.2mm (0.3mm, 0.4mm as choice)
Flow Rate: 1.38L/H, (2L/H, 1L/H ,as choice)
working pressure: 0.25 mpa
Drip Spacing: 30CM. (100cm, 15cm, 20cm, 30cm as choice)
Color:
black
Advantage:uniformity of drip, prevent clogging
Application:Vegetable, garden, greenhouse, etc
Packing:2000m/roll
MOQ:1 ROLL
ADVANTAGE
1. With Superior VB and excellent uniformity.
2. With new type of labyrinth passages, excellent clogging resistance.
3. Excellent Pressure-reducing, longer for laying length.
4. Produced by Good Quality of Raw material with Anti-corrosion, Anti-UV and Anti-aging.
5.Extruded with Emitter inside, light weight and packed by roll, good for transportation.
6. Recommend Working pressure is 0.8 bar to 1.0 bar.
7. All the holes of Emitters upward. Lay in line and levelly.
8.120 mesh filtration is necessary
Recommended horizontal laying length
flow changes | Drop spacing 0.20m | Drop spacing 0.30m | Drop spacing 0.40m | |||
2.2L/h | 3.2L/h | 2.2L/h | 3.2L/h | 2.2L/h | 3.2L/h | |
±5% | 47 | 32 | 72 | 51 | 102 | 89 |
±7.5% | 58 | 39 | 81 | 59 | 113 | 102 |
±10% | 64 | 43 | 87 | 64 | 119 | 109 |
(If Inlet pressure is 0.1Mpa,different flow rates are recommended when the ground is flat.)
thickness | flow rate | inner diameter | outer diameter | max working pressure | Flow deviation(CV) | |
2.2L/H | 3.2L/H | |||||
0.20mm | 2.2L/h or 3.2L/h | 15.8mm | 16.2mm | 0.13MPa | 1.50% | 2.40% |
0.30mm | 2.2L/h or 3.2L/h | 15.8mm | 16.4mm | 0.15MPa | 1.50% | 2.40% |
0.40mm | 2.2L/h or 3.2L/h | 15.8mm | 16.6mm | 0.18MPa | 1.50% | 2.40% |
Pressure VS flow rate
flow rate | pressure(MPa)VS flow rate(L/h) | |||||
0.05 | 0.08 | 0.12 | 0.15 | 0.20 | 0.25 | |
2.2L/h | 1.32 | 1.71 | 1.91 | 2.41 | 2.83 | 3.34 |
3.2L/h | 1.83 | 2.35 | 2.67 | 3.33 | 3.95 | 4.28 |
APPLICATION
1. Drip irrigation for vegetable, fruit, flower, Chinese herbal and green house crops.
2. Emitter Spacing 10cm is for all crops.
20cm spacing is for vegetable like chili, cut flowers, melon, onion, pepper, potato, strawberry, tomatto.
30cm spacing is for alfalfa, asparagus, banana, broccoli, cauliflower, celery, corn, cotton, cucumber, eggplant, garlic, ginseng, grape, leafy, vegetables, lettuce, onion, pepper, potato, pumpkin, rose, spinach, squash, strawberry, sugarcane, tobacco, tomato, turnip, watermelon, etc
40cm spacing: alfalfa, grape, onion, pepper, potato, sugarcane, tobacco, turnip, watermelon, etc.
50cm spacing: Alfalfa, blueberry, grape, raspberry, soybean, sugarcane, etc.
