- Usage:irrigation Sprinkler
- Application:Agriculture Irrigaiton
- Color:Black
- Diameter:12mm
- Working pressure:1bar
- Function:Green Water
- Keyword:Lateral Drip Irrigation System
- Product Name:farm irrigation sprinkler
- Type:Sprinklers
- Sprinkler Type:360 Gear Drive
- Place of Origin:CN;FUJ
- Model Number:RS5022-007
Feature
The nozzle is made of high-strength engineering plastics or metal materials with reasonable structure design, excellent hydraulic performance, stable operation, high spraying uniformity, small droplet diameter, and good atomization effect. Applicable tovegetable fields, orchards, can also be used for urban green space, etc.
working pressure | 0.2mpa | 0.3mpa | 0.4mpa | |||||
Description | item no | nozzle dia | double nozzle flow(m3/h) | Spray radius(m) | double nozzle flow(m3/h) | Spray radius(m) | double nozzle flow(m3/h) | Spray radius(m) |

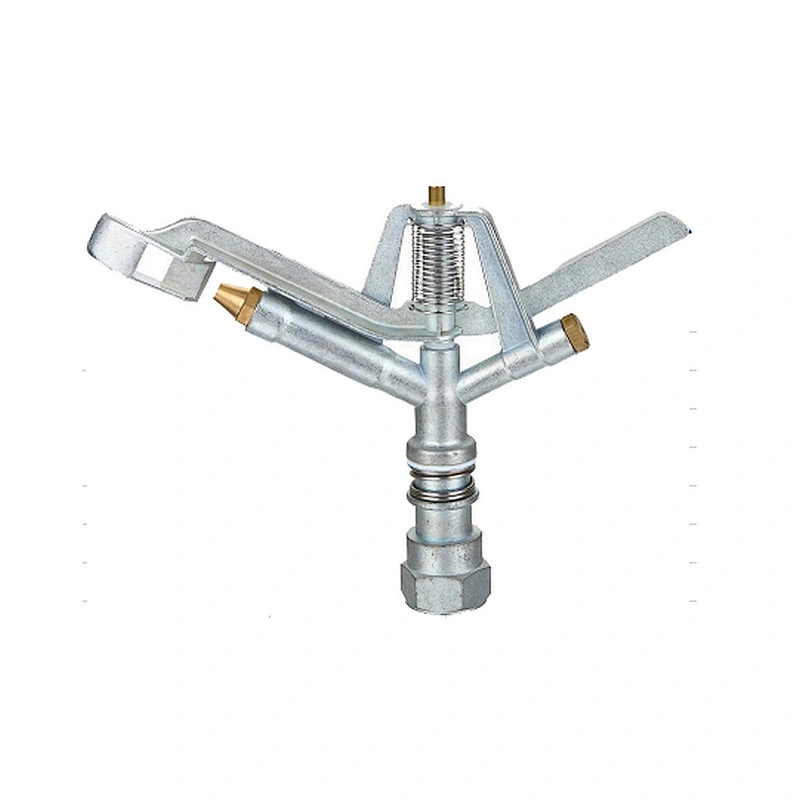

Impact sprinkler | RS5022 -1 | 2.5+1.6mm | 0.47 | 9.5 | 0.58 | 10.0 | 0.67 | 10.0 |
RS5022 -2 | 3.0+1.6mm | 0.61 | 10.0 | 0.76 | 10.5 | 0.88 | 10.5 | |
RS5022 -3 | 3.5+1.6mm | 0.78 | 10.5 | 0.97 | 11.0 | 1.14 | 11.0 | |
RS5022 -4 | 4.0+1.6mm | 0.95 | 11.0 | 1.20 | 11.5 | 1.43 | 11.5 | |
Impact sprinkler | RS5035-1 | 4.0+2.5mm | 1.45 | 13.0 | 1.68 | 13.5 | 1.88 | 14.0 |
RS5035-2 | 4.5+2.5mm | 1.66 | 14.0 | 1.94 | 14.5 | 2.18 | 15.0 | |
RS5035-3 | 5.0+2.5mm | 1.95 | 14.5 | 2.28 | 15.0 | 2.56 | 16.0 | |
| Pic | Item No. | Description | Packing (Pcs) | Measurement (Cm) | G.W (Kgs) |
 | RS5022 | Impact sprinkler,1/2" | 1/200 | 54*35*28 | 12 |
 | RS5035 | Impact sprinkler,3/4" | 1/100 | 54*35*28 | 12 |
 | SP3302 | Rotary sprinkler, Blue nozzle,Dn1/2" | 10/300 | 54*35*28 | 15 |
| SP3303 | Rotary sprinkler,Green nozzle,Dn1/2" | 10/300 | 54*35*28 | 15 | |
 | BMS1001 | Butterfly type sprinkler,Inner size 1/2" | 50/300 | 54*35*28 | |
 | FB5193 | Female thread bracket joint ,Φ12*1/2" | 50/550 | 54*35*28 | 7 |
 | AC5194 | Adapter joint ,Φ12*1/2" | 100/3000 | 54*35*28 | 15 |
