• Product name:solenoid valve
• Material:Plastic
• Color:Black
• Packing:CTN
• Application:Agricultural Farmland Irrigation System
• Voltage:24V DC/AC
• Type:Truck Shut-Off Valves
• Type:Instrument Manifold Valves
• Type:Pressure Reducing Control Valves
• Type:Water Pressure Reducing Valves
• Type:Air & Vacuum Release Valves
• Type:SOLENOID VALVES
• Type:Water Regulating Valves
• Type:Air Valves & Vents
• Type:Flush Valves
• Application:General
• Temperature of Media:Normal Temperature
• Power:Hydraulic
• Media:Water
• Structure:regulating
• Place of Origin:CN;FUJ
• Brand Name:DFSGG
• Model Number:APSV15
• Port Size:1.5inch,2inch,3inch

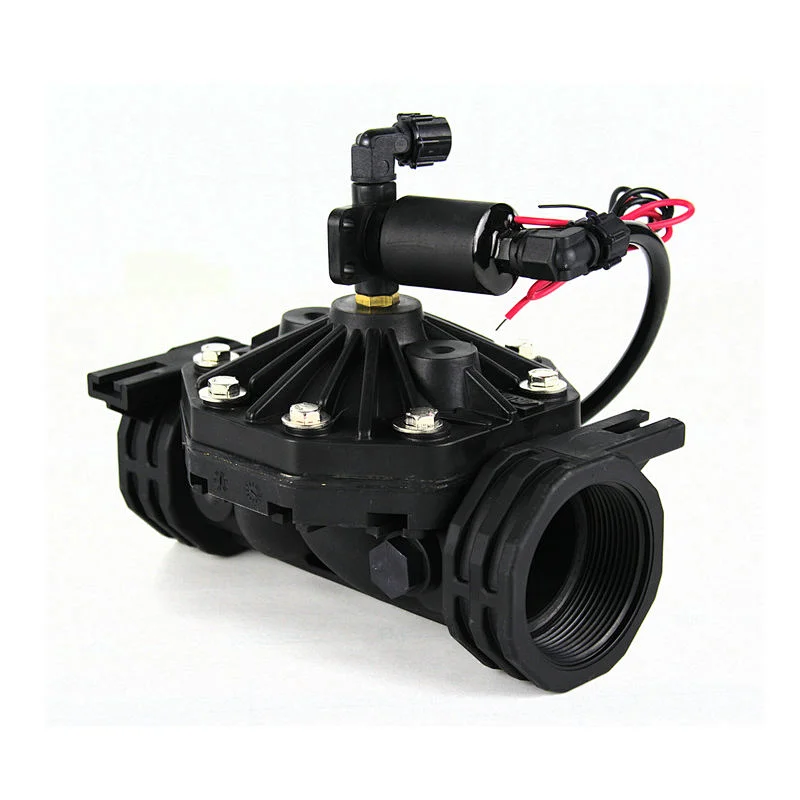

Hydraulic controlvalve

Features

lThe main valve and the electromagnetic head are used to control the on-off valve, and the electric signal remote control is turned on or off.

lSize:2",3",4"

lElectromagnetic head voltage: 24VAC / VDC and 9-30VDC Latch 2-position 3way

lElectromagnetic head type: normally open / normally closed

lConnection method: internal thread / flange

lMaximum working water temperature: 60 ° C

Reducing valve

lThe pressure reducing valve consists of a main valve, a pilot valve, and a three-way control valve to form a hydraulic control pressure regulating system.

lWith pilot valve control, it can automatically maintain stable outlet pressure, no need for other devices and energy, easy to use.

lThe pressure regulation precision is high, and the pressure reduction voltage regulation is sensitive and reliable.

lIt is suitable for installation in the downstream drip irrigation system or micro-spraying equipment to protect the micro-spraying equipment from continuous high water pressure and avoid bursting.

Technical Parameters

lSize:2",3",4"

lWorking pressure range:0.35-10bar

lPressure adjustment range: 0.8-6.5bar

Connection method: internal thread / flange

Pic	Item No.	Description	Packing (Pcs)	Measurement (Cm)	G.W(Kg)

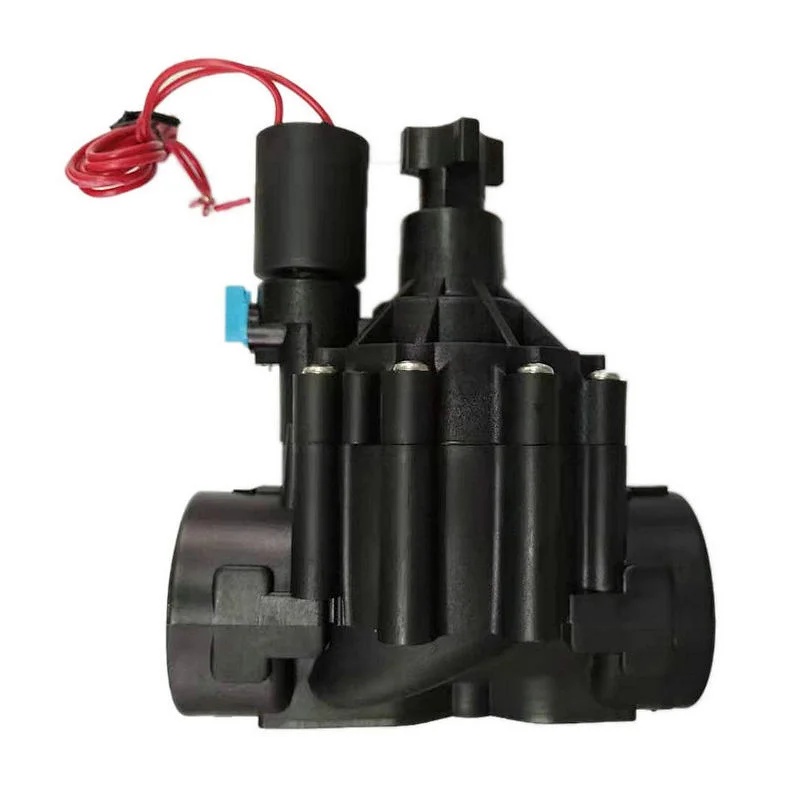

	SVF01	Solenoid valve, 1"female thread	20	26*25*25	8
	SVF15	Solenoid valve, 1.5"female thread	2	47*34*29	8
	SVF02	Solenoid valve, 2"female thread	6	47*34*29	7
	SVF03	Solenoid valve, 3"female thread	1	47*34*29	7
	SVFL04	Solenoid valve, 4"flange	1	47*34*29	8
	RPF15	Reducing valve, 1.5"female thread	1	54*35*28	9
	RPF02	Reducing valve, 2"female thread	1	54*35*28	10
	RPF03	Reducing valve, 3"female thread	1	54*35*28	9
	RPF04	Reducing valve, 4"flange	1	54*35*28	9

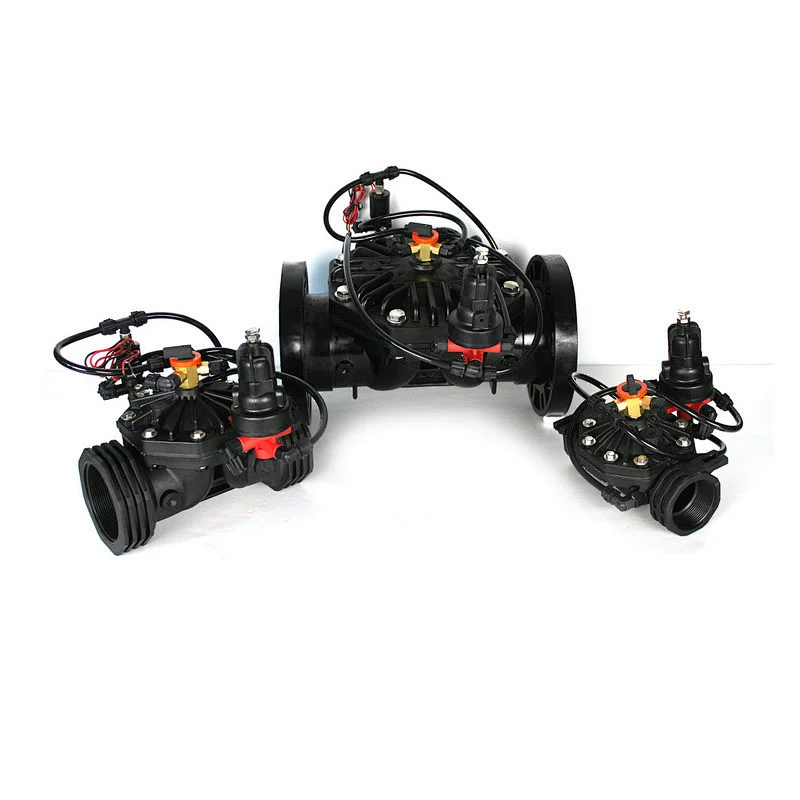

	APSV15	Solenoid regulator valve, 1.5"female thread	1	54*35*28	9
	APSV02	Solenoid regulator valve, 2"female thread	1	54*35*28	9
	APSV03	Solenoid regulator valve, 3"female thread	1	54*35*28	9
	APSV04	Solenoid regulator valve, 4"flange	1	54*35*28	9
