- Color:Black
- Material:Plastic
- G.W(kgs):10
- Measurement(cm):54*35*28
- Packing:CTN
- Size:2"female thread
- Application:Agricultural Farmland Irrigation System
- Voltage:24V DC/AC
- Product name:valve for easy control of irrigation
- Type:Plastic Check Valves
- Type:Backwater Valves
- Type:Pressure Reducing Control Valves
- Type:Water Pressure Reducing Valves
- Type:Air & Vacuum Release Valves
- Type:SOLENOID VALVES
- Type:Water Regulating Valves
- Type:Air Valves & Vents
- Type:Flush Valves
- Application:General
- Temperature of Media:Normal Temperature
- Power:Hydraulic
- Media:Water
- Structure:regulating
- Place of Origin:CN;FUJ
- Warranty:1 years
- Brand Name:DFSGG
- Model Number:RPF02-002
- Port Size:2inch,3inch ,4inch

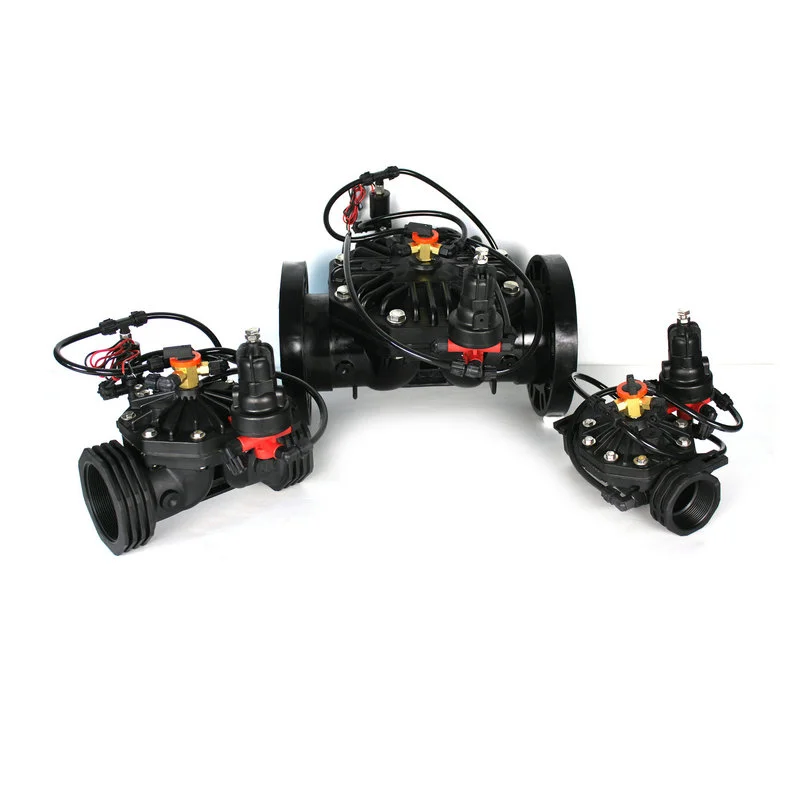

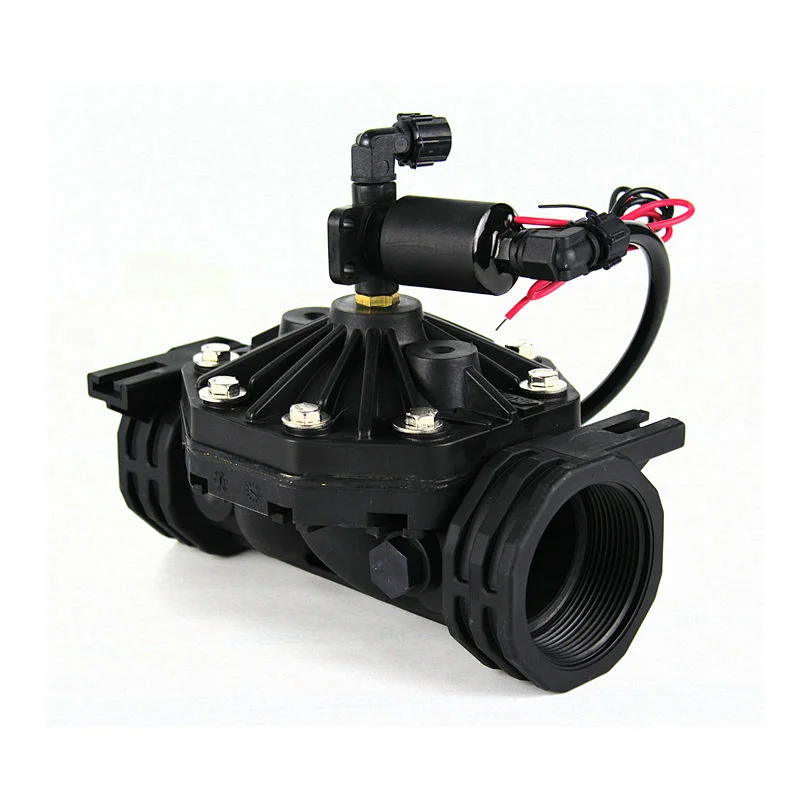

Hydraulic controlvalve
Features
lThe main valve and the electromagnetic head are used to control the on-off valve, and the electric signal remote control is turned on or off.
lSize:2",3",4"
lElectromagnetic head voltage: 24VAC / VDC and 9-30VDC Latch 2-position 3way
lElectromagnetic head type: normally open / normally closed
lConnection method: internal thread / flange
lMaximum working water temperature: 60 ° C

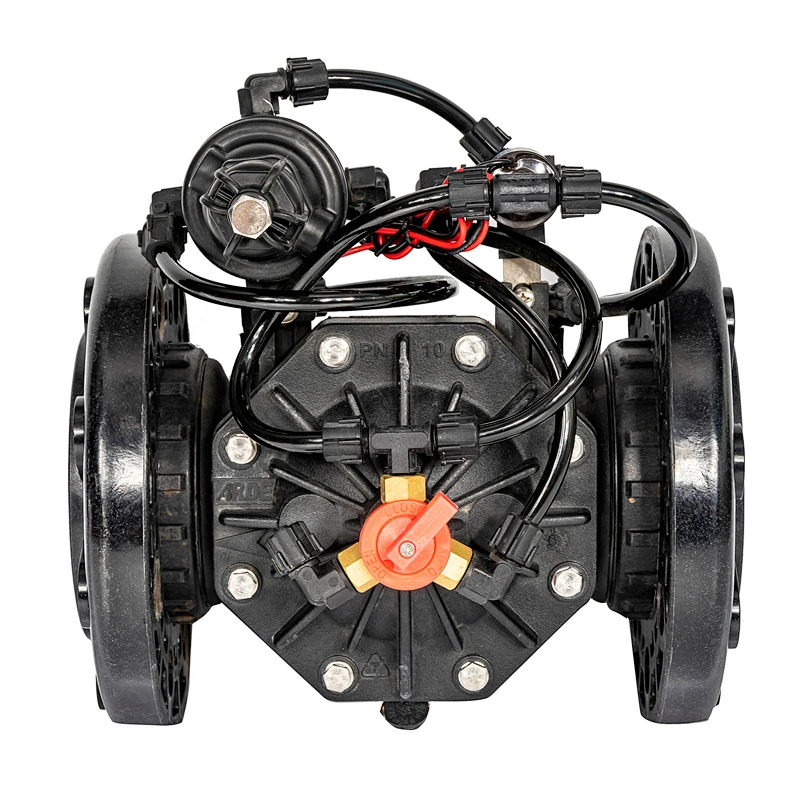

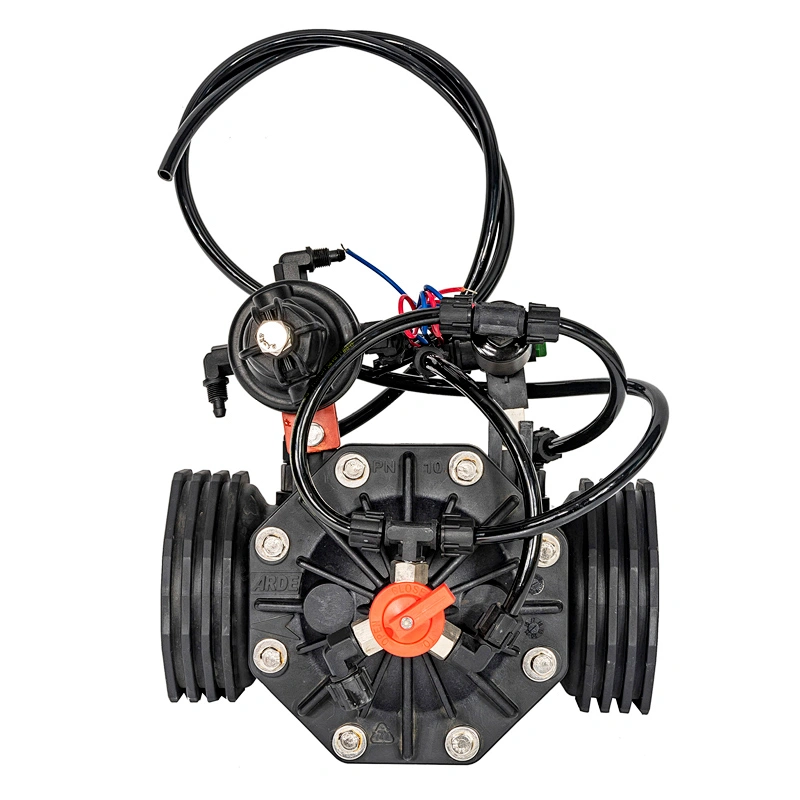

Reducing valve

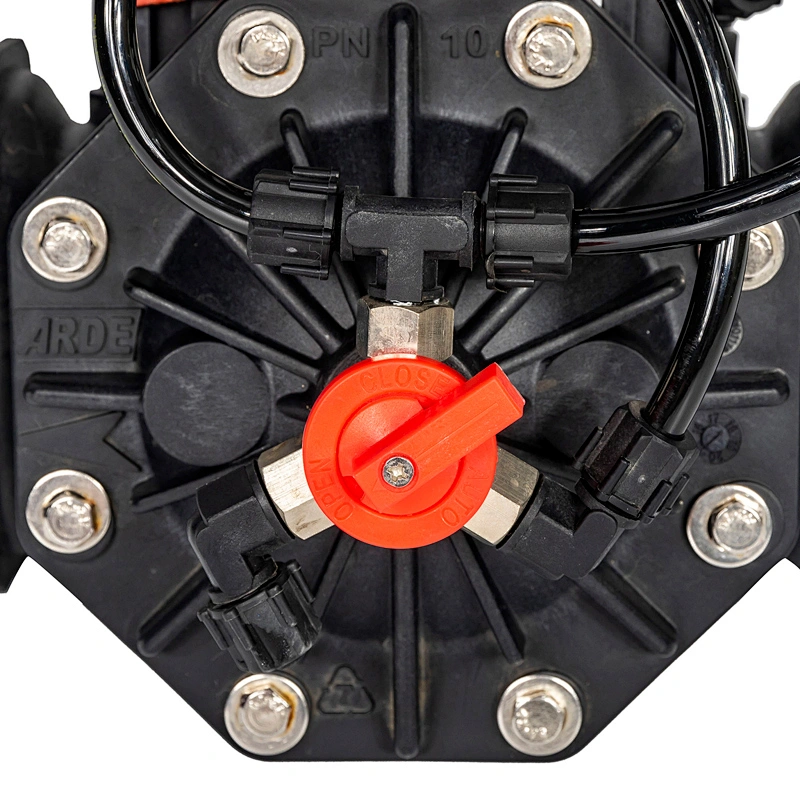

lThe pressure reducing valve consists of a main valve, a pilot valve, and a three-way control valve to form a hydraulic control pressure regulating system.
lWith pilot valve control, it can automatically maintain stable outlet pressure, no need for other devices and energy, easy to use.
lThe pressure regulation precision is high, and the pressure reduction voltage regulation is sensitive and reliable.
lIt is suitable for installation in the downstream drip irrigation system or micro-spraying equipment to protect the micro-spraying equipment from continuous high water pressure and avoid bursting.
Technical Parameters
lSize:2",3",4"
lWorking pressure range:0.35-10bar
lPressure adjustment range: 0.8-6.5bar
lConnection method: internal thread / flange
Size | kVFlow Coefficient | Maximum working pressure | Minimum working pressure | L*W*H(mm) |
2"flange (Dn50) | 70 | 10kg/cm2 | 0.5kg/cm2 | 190*100*125 |
2"female thread (Dn50) | 70 | 190*170*170 | ||
3"flange (Dn80) | 90 | 290*138*200 | ||
3"female thread (Dn80) | 90 | 290*208*208 | ||
4"flange (Dn100) | 200 | 310*230*230 |
| Pic | Item No. | Description | Packing (Pcs) | Measurement (Cm) | G.W(Kg) |
 | SVF01 | Solenoid valve, 1"female thread | 20 | 26*25*25 | 8 |
 | SVF15 | Solenoid valve, 1.5"female thread | 2 | 47*34*29 | 8 |
| SVF02 | Solenoid valve, 2"female thread | 6 | 47*34*29 | 7 | |
| SVF03 | Solenoid valve, 3"female thread | 1 | 47*34*29 | 7 | |
 | SVFL04 | Solenoid valve, 4"flange | 1 | 47*34*29 | 8 |
 | RPF15 | Reducing valve, 1.5"female thread | 1 | 54*35*28 | 9 |
| RPF02 | Reducing valve, 2"female thread | 1 | 54*35*28 | 10 | |
| RPF03 | Reducing valve, 3"female thread | 1 | 54*35*28 | 9 | |
 | RPF04 | Reducing valve, 4"flange | 1 | 54*35*28 | 9 |
 | APSV15 | Solenoid regulator valve, 1.5"female thread | 1 | 54*35*28 | 9 |
| APSV02 | Solenoid regulator valve, 2"female thread | 1 | 54*35*28 | 9 | |
| APSV03 | Solenoid regulator valve, 3"female thread | 1 | 54*35*28 | 9 | |
 | APSV04 | Solenoid regulator valve, 4"flange | 1 | 54*35*28 | 9 |
