- Product name:pump mist sprayer
- Color:green Black
- Application:Garden
- Power Source:Electricity
- Nozzle:Four Nozzles
- Size:54*35*28cm
- Certification:ISO9001
- Capacity:26L/H 28L/H 30L/H 32L/H
- Type:Sprayers
- Sprayer Type:Trigger
- Usage:Agriculture
- Place of Origin:CN;FUJ
- Brand Name:DFS
- Model Number:FAMS1004-02
- Material:Plastic
Feature
l This series can be equipped with different flow rates and spray diameters micro sprinklers. It can achieve saving water, saving fertilizer and saving energy.
l The micro-sprinkler assembly is made of high-quality materials that are resistant to UV and atmospheric chemicals, ensuring maximum accuracy and longevity.To meet needs, micro-sprinkler components can be replaced.

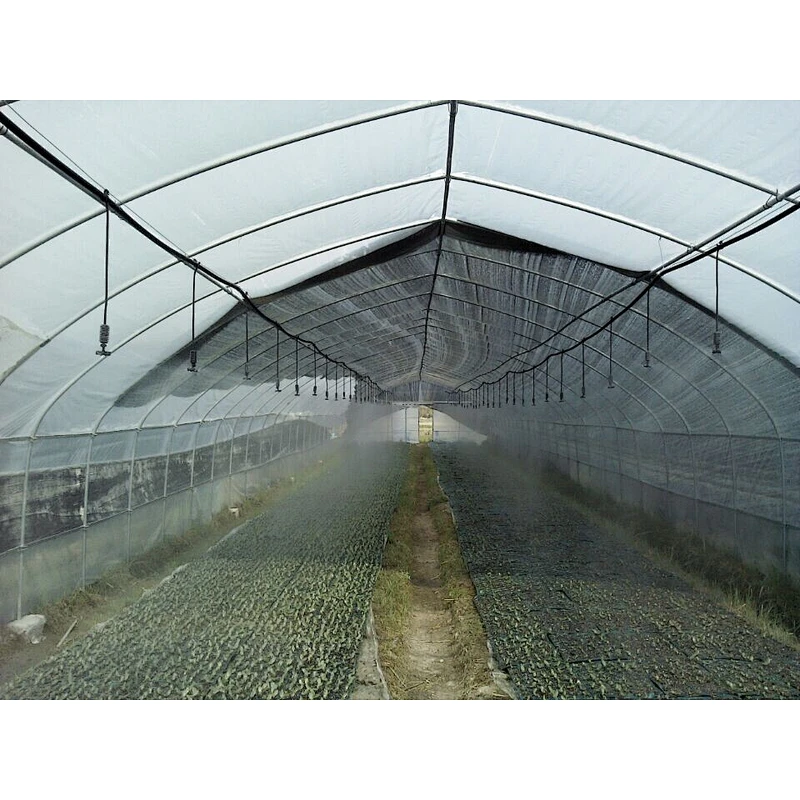

l Micro sprinklers are ideal for small-flow irrigation equipment for vegetables, orchards, landscaping, greenhouses, nurseries, cooling, frost protection and yard irrigation.
Technical Parameter
Working pressure | 150Kpa | 200Kpa | 250Kpa | 300Kpa | |||||||
Production | Item No. | Nozzle color | Nozzle dia (mm) | Flow rate (L/h) | Spray radius (m) | Flow rate (L/h) | Spray radius (m) | Flow rate (L/h) | Spray radius (m) | Flow rate (L/h) | Spray radius (m) |
Refraction atomized micro sprinkler | RAMS1001 | Black | 0.8 | 24.6 | upside down: 0.8 Plug: 0.8 | 28.7 | upside down: 0.8 Plug: 0.8 | 31.6 | upside down: 0.9 Plug: 0.9 | 34.9 | upside down: 0.9 Plug: 0.9 |
RAMS1002 | Blue | 1.0 | 39.7 | upside down: 1.0 Plug: 0.9 | 44.9 | upside down: 1.0 Plug: 0.9 | 50.0 | upside down: 1.1 Plug: 1.0 | 55.6 | upside down: 1.1 Plug: 1.1 | |
RAMS1003 | Green | 1.2 | 58.5 | upside down: 1.1 Plug: 1.0 | 66.6 | upside down: 1.1 Plug: 1.0 | 75.0 | upside down: 1.2 Plug: 1.1 | 89.5 | upside down: 1.2 Plug: 1.2 | |
RAMS1004 | Red | 1.6 | 73.5 | upside down: 1.2 Plug: 1.0 | 86.1 | upside down: 1.2 Plug: 1.1 | 98.3 | upside down: 1.3 Plug:1.2 | 110.7 | upside down: 1.4 Plug: 1.2 | |
Note:The spray radius is measured at a height of 0.9 m above the ground and 1.8 m at the time of inversion when the outdoor wind is free of wind. The radius is the distance from the center point of the micro-sprinkler with the normally installed and the sprayed wet ground farthest away.
| Pic | Item No. | Description | Packing (Pcs) | Measurement (Cm) | G.W (Kgs) |

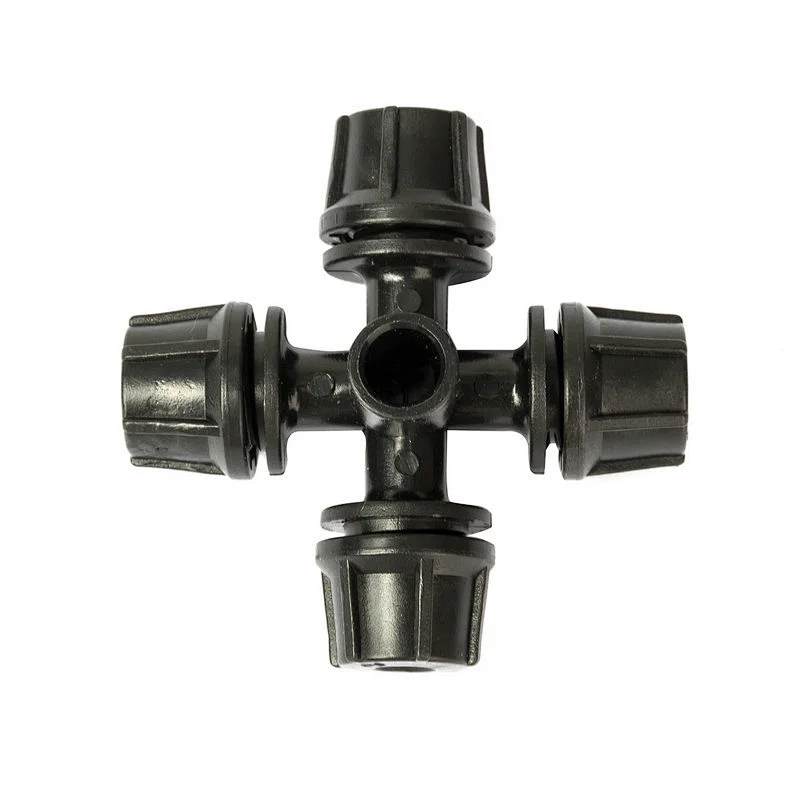

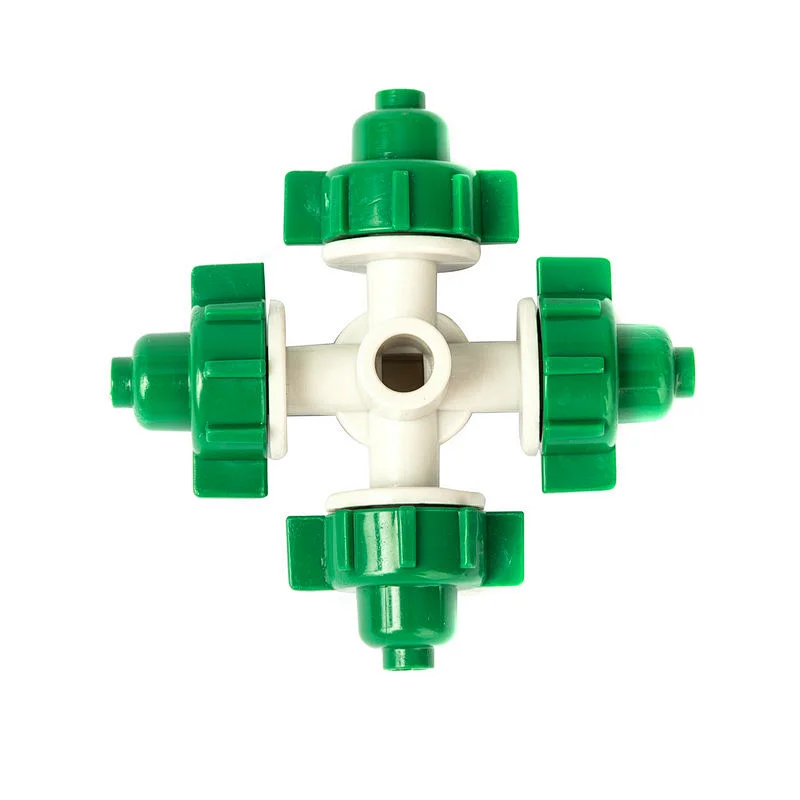

 | FAMS1001 | Four Outlet Atomizing Micro Sprinkler,Green | 100/1000 | 54*35*28 | 8 |

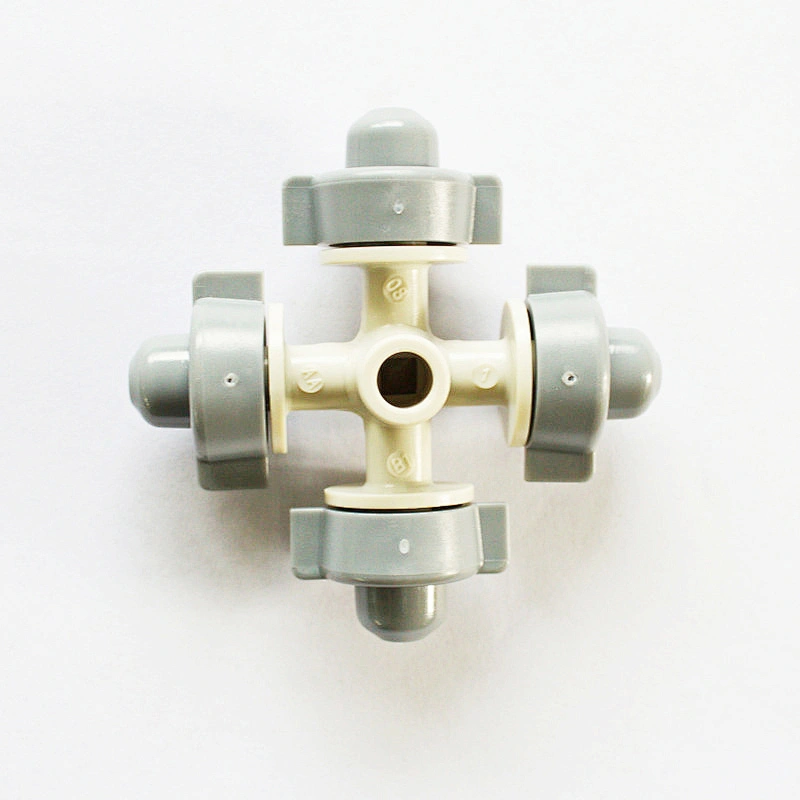

| FAMS1002 | Four Outlet Atomizing Micro Sprinkler,Grey | 100/1000 | 54*35*28 | 8 | |
 | FAMS1003 | Four Outet Atomizing Micro Sprinkler,Black | 100/2500 | 54*35*28 | 20 |

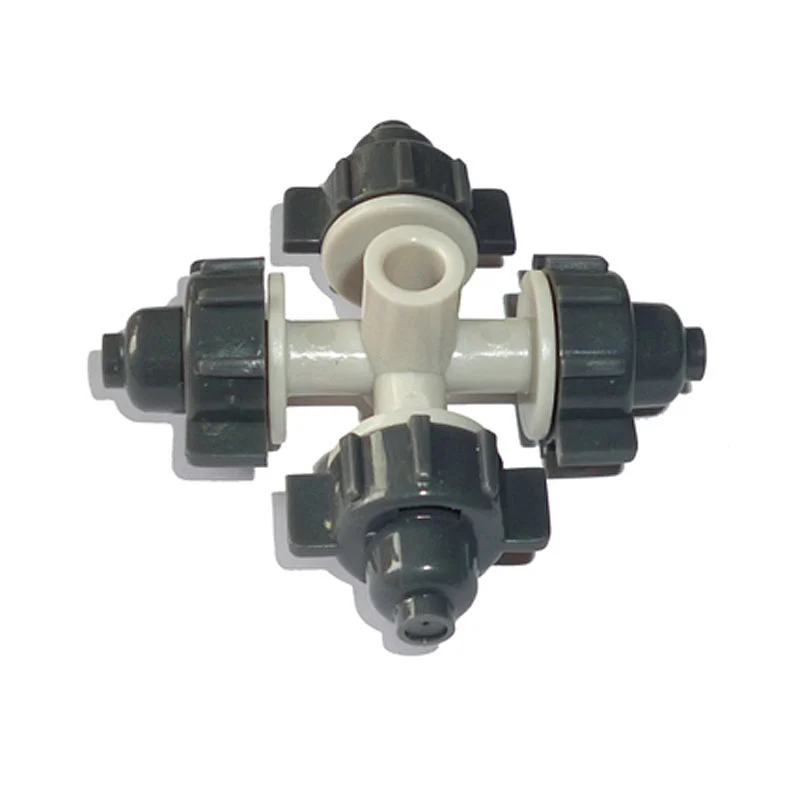

| FAMS1004 | Four Outlet Atomizing Micro Sprinkler,Grey | 100/2500 | 54*35*28 | 20 |
